SKU: ARC-1203-8I

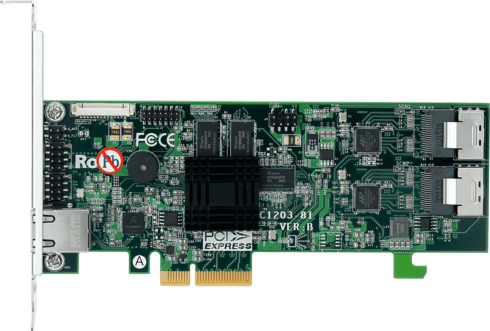

Areca ARC-1203-8i
RAIDy, steady, go! Controller for Server and NAS
Manufacturer:
Areca
1
- Supports up to 8 x 6 Gbps SATA hard disks
- 512 MB SDRAM with ECC
- Supports volume sets >2 TB
- Optional battery backup module
- Multiple ARC-1203-4i in one system possible in parallel
- Drivers for VMware, Windows, Linux, Solaris, MAC OS X and FreeBSD
Areca's ARC-1203-8i supports up to eight SATA III drives as a PCIe-to-SATA RAID controller. The ARC-1203 series can be easily integrated into a variety of hardware and software platforms. This makes the RAID controllers ideal for both cost-effective and high-performance network-attached storage (NAS) systems that require high security and performance.
Similar products
SATA RAID Controller

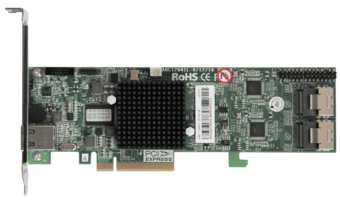

Areca ARC-1264il-12
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller
Areca ARC-1264il-16
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller
Areca ARC-1203-2i
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller

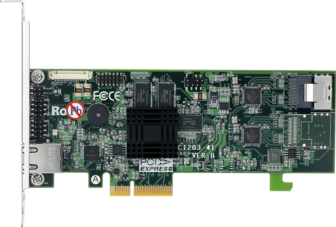

Areca ARC-1203-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller
|
NVMe RAID Controller
Areca ARC-1203-2N
RAIDy, steady, go! OS mirror controller for servers and NAS
Show product
Specifications
Administration
Serial port
No
General
Active cooling
No
PCIe Generation
2.0
Model
ARC-1203 Serie
Cache
512 MB
Transferrate
6
Manufacturer
Areca
Internal connectors
2 x SFF-8087
Other Technical Features
Drives (max.)
8
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
60 Celsius (°C)
Dimensions and Weight
FormFactor
Low profile, PCIe x4
Expansion and connectivity
Internal connectors
2 x SFF-8087
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
