SKU: ARC-1226-8X

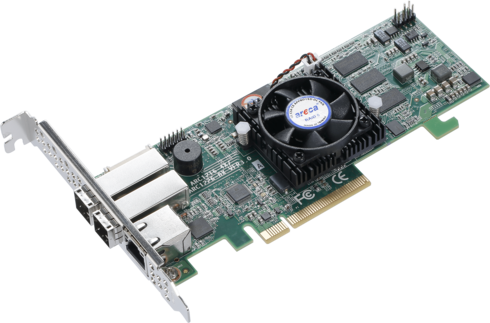

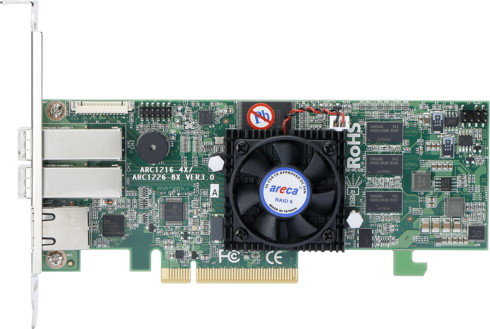

Areca ARC-1226-8x
RAIDy, steady, go! Controller for Server and NAS
Manufacturer:
Areca
1
- Supports up to eight SAS/SATA HDDs via external ports
- 12 Gbps transfer rate per port
- 1 GB DDR3-1600 SDRAM with ECC
- 1.2 GHz dual core ROC processor for true RAID 6 performance
- Optional battery backup module
- Drivers for Windows, MAC OS X, Linux, Solaris, FreeBSD and VMware
Areca's high-performance ARC-1226-8x 12 Gbit/s SAS RAID controllers support up to eight external SAS/SATA disks.The PCIe 3.0 host RAID controllers provide a cost-effective solution for up to eight SAS peripherals. They are backward compatible with 6 Gbit/s and 3 Gbit/s SAS/SATA hard drives. With 1GB of onboard DDR3-1600 SDRAM, the ARC-12x6 series offsets lush cache memory that can be optionally protected from power failures via BBM.
Similar products
SAS RAID Controller
Areca ARC-1886-16I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4N8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-6N2I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8X
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

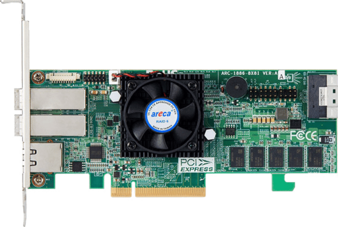

Areca ARC-1886-8X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X12I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1686-2NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Areca ARC-1686-6NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID 9540-8i
PCIe 4.0 tri-mode RAID controller for SAS, SATA and NVMe
Show product
SAS RAID Controller
Areca ARC-1214-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1216-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1216-4x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1226-8i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller
Areca ARC-1883I
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-12
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-16
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-24
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883LP
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883X
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9341-4i
Entry-level four-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9341-8i
Entry-level eight-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-16i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-24i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
Specifications
Administration
Serial port
No
General
Active cooling
No
PCIe Generation
3.0
Model
ARC-12x6 Serie
Cache
1 GB
Transferrate
12
Manufacturer
Areca
Other Technical Features
Drives (max.)
8
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
60 Celsius (°C)
Dimensions and Weight
FormFactor
Low profile, PCIe x8
Expansion and connectivity
External connections
2x SFF-8644
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
