SKU: ARC-1264IL-12
Areca ARC-1264il-12
RAIDy, steady, go! Controller for Server and NAS
Manufacturer:
Areca
1
- Supports up to 16 SATA or SSD drives at 6 Gbps
- Up to 1 GB DDR3-933 cache (read/write cache allocation by policy)
- Optional Battery-Backup Module (BBM)
- Self-encrypting drive management
- Support for multiple RAID 0 and RAID 10 (1E) (RAID 00 and RAID100)
- Drivers for Windows, Linux (open source), FreeBSD (open source), Soaris (open source), Mac and VMware

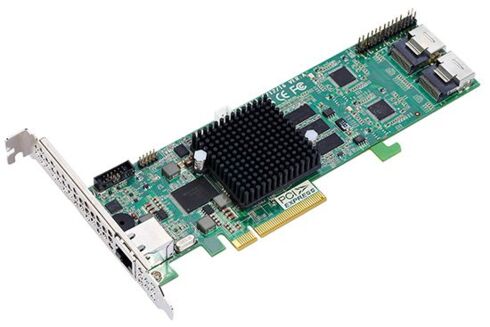

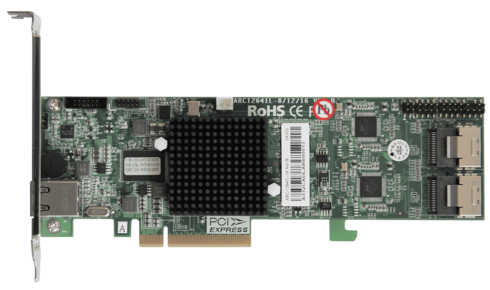

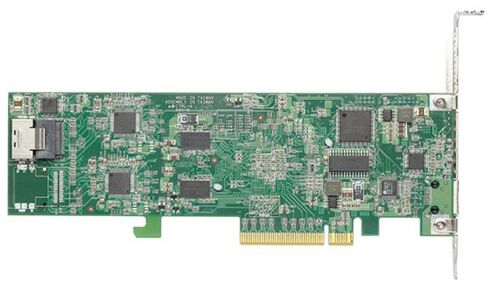

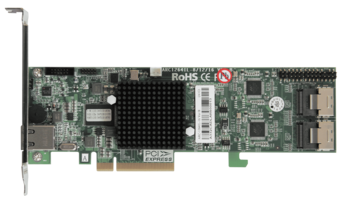

ARC-1264il models couple 12 or 16 SATAIII peripherals to the 2.0 version of the PCIe bus as a host RAID controller. The 12/16 ports target high-availability and capacity-oriented applications that require large capacities such as security systems, surveillance, multimedia production, data capturing, mail servers, and database systems. They support direct-attached 12 or 16 internal 6 Gbps SATA ports via 3/4 SFF-8087 connectors.
Similar products
SATA RAID Controller
Areca ARC-1264il-16
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller
Areca ARC-1203-2i
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller
Areca ARC-1203-8i
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller
Areca ARC-1203-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SATA RAID Controller
|
NVMe RAID Controller
Areca ARC-1203-2N
RAIDy, steady, go! OS mirror controller for servers and NAS
Show product
Specifications
Administration
Serial port
No
General
Active cooling
No
Cooling type
Passive
PCIe Generation
2.0
Model
ARC-1264 Serie
Cache
1 GB
Transferrate
6
Manufacturer
Areca
Internal connectors
3 x SFF-8087
Other Technical Features
Drives (max.)
12
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
60 Celsius (°C)
Dimensions and Weight
FormFactor
Low profile, PCIe x8
Expansion and connectivity
Internal connectors
3 x SFF-8087
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
