SKU: ARC-1320-8X

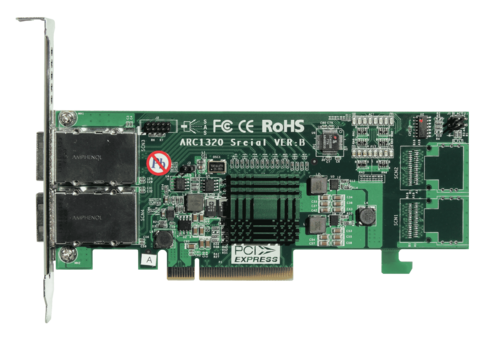

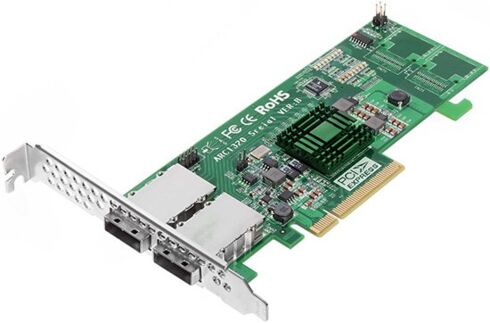

Areca ARC-1320-8x
Low cost HBA for JBODs and removable media
Manufacturer:
Areca
1
- Eight (2x SFF-8088) external ports
- Ideal for SAS and SATA tape drives and other removable media (DAS/JBOD)
- PCIe 2.0 x8 lanes (x8, x4 and x1 lane widths)
- Supports SAS and SATA connection rates of 1.5, 3.0 and 6 Gbps per SAS port
- Drivers for Windows, Linux, XenServer, unRAID, Solaris, FreeBSD, FreeNAS, NAS4Free, illumos and macOS
Host bus adapters of the ARC-1320 series form a low-cost 6 Gbit/s solution with improved reliability and performance at the same time. They are available with a variety of internal and external port configurations and broad driver support, especially for tiered storage architectures. For example, the SAS host adapters allow large-scale expansion of direct-attach storage (DAS) arrays via external ports, connecting up to 128 devices via their SFF-8088 connectors. This makes the 6 Gbps host adapters ideal for large-capacity external storage RAID and non-RAID installations.
Similar products
HBA
Areca ARC-1320-4i4x
Low cost HBA for JBODs and removable media
Show product
HBA
Areca ARC-1320-8i
Low cost HBA for JBODs and removable media
Show product
HBA
Areca ARC-1330-8i
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA
Areca ARC-1330-8x
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA
Broadcom/LSI SAS 9300-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9300-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9300-4i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-24i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI 9400-16e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-16i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA

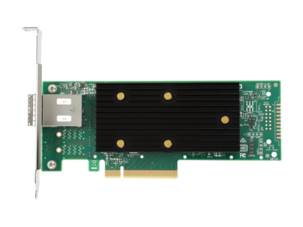

Broadcom/LSI 9400-8e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-8i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-8i8e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9405W-16e
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9405W-16i
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9500-16i
Tri-Mode HBAs for PCIe 4.0
Show product
HBA
Broadcom/LSI 9500-8e
Tri-Mode HBAs for PCIe 4.0
Show product
HBA
Broadcom/LSI 9500-8i
Tri-Mode HBAs for PCIe 4.0
Show product
Specifications
Administration
Serial port
No
General
Active cooling
No
Cooling type
Passive
PCIe Generation
2.0
Model
ARC-1320 Serie
Cache
N/A
Transferrate
6
Manufacturer
Areca
Other Technical Features
Drives (max.)
128
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
60 Celsius (°C)
Dimensions and Weight
FormFactor
Low profile, PCIe x8
Expansion and connectivity
External connections
2x SFF-8088
