SKU: ARC-1686-8I

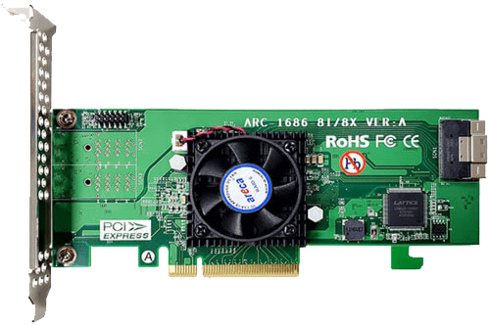

Areca ARC-1686-8I

Fast tri-mode RAID controller from Areca

Manufacturer:

Specifications

PCIe 4.0 host interface, PCIe Gen4 x8 lanes with a maximum transfer rate of up to 128 Gbit/s
SED support
Configurable stripe size up to 1MB
Supports SAS tape devices
Drivers for Windows, MacOS, Linux, FreeBSD/Free-NAS/NAS4Free/XigmaNAS, TrueNAS, unRAID, XenServer Citrix Hypervisor, OpenBSD & NetBSD, VMware

The 1686 series controllers have an ARM A15 dual-core processor built in, which the developers have created as a RAID on Chip (ROC) controller. With eight lanes on the PCIe Gen 4.0 bus, the ARC-1686 models provide higher levels of performance for SATA, SAS and NVMe drives.

The ultra-fast, reliable and ultra-compact RAID controller family is designed to enable enterprises to tackle high-speed data acquisition and processing.

The low-profile ARC-1686-8I model fits into small server chassis and provides 8 internal ports. It supports RAID levels 0, 1 (single/multi mirroring), 10, single disk (single/dual/triple) or JBOD.
