SKU: ARC-1883IX-24

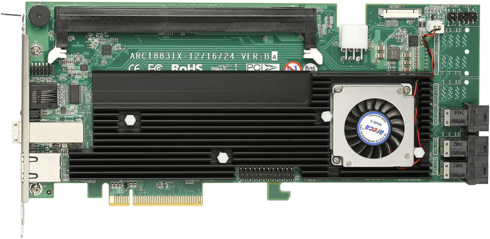

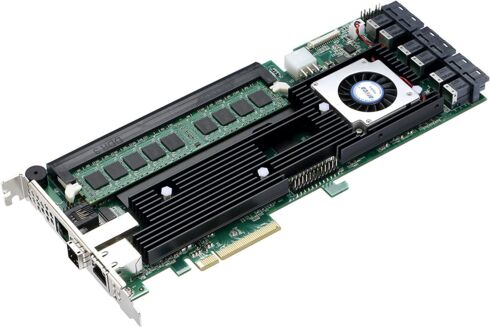

Areca ARC-1883IX-24
A RAID controller for the really big tasks
Manufacturer:
Areca
1
- Manages up to 512 SAS, SATA or SSD drives via 12 Gbps SAS expanders
- Up to 8 GB DDR3-1866 cache (ARC-1883ix-12/16/24)
- DataBolt bandwidth optimizer to balance between hosts and SAS/SATA-Devices
- Supports optional flash-based backup module protection (FBM) with SuperCap or battery
- Controller-level hardware encryption and self-encrypting drive management
- General-purpose Windows, Linux, FreeBSD, Solaris, unRAID, XenServer, macOS and VMware
SAS RAID controllers from Areca's ARC-1883 family support up to 512 SAS/SATA devices at 12 Gbps on a single adapter (via a SAS expander). They have been equipped with a 1.2 GHz dual-core ROC processor, DDR3-1866 memory architecture, and PCIe 3.0 to handle the most power-hungry data center and IT applications. The ARC-1883i, ARC-1883LP and ARC-1883x models come in a low-profile format for low profile chassis variants and each have eight ports installed (internal, external and both). The ix sub-family - in full height - brings four external mini-SAS-HD ports in addition to their 12/16/24 internal ports.However, they share their advanced technology that enables increased performance and enhanced protection of enterprise data. This makes them ideal as file servers, web servers, supercomputers, NAS, near-line backup, streaming, aplication servers (audio, video) and for security-related systems.
Similar products
SAS RAID Controller

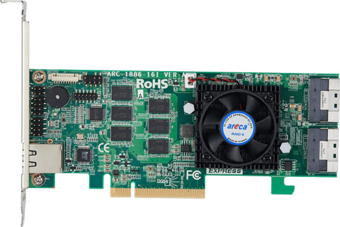

Areca ARC-1886-16I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

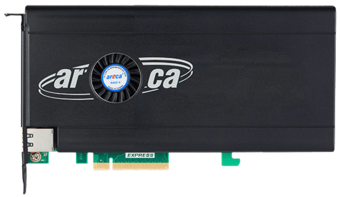

Areca ARC-1886-4N8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

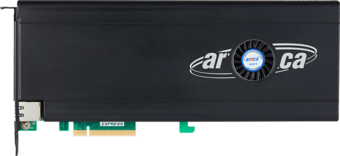

Areca ARC-1886-6N2I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

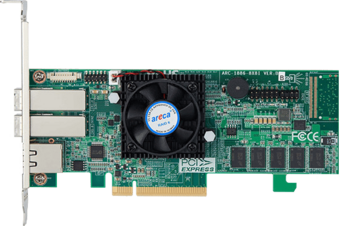

Areca ARC-1886-8X
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

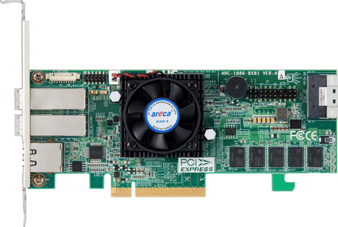

Areca ARC-1886-8X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X12I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

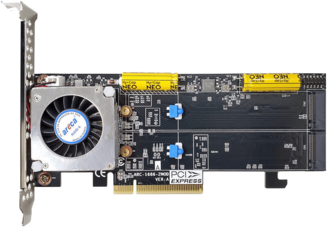

Areca ARC-1686-2NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller

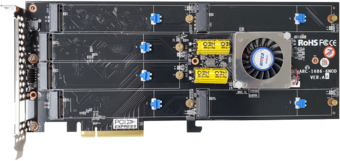

Areca ARC-1686-6NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID 9540-8i
PCIe 4.0 tri-mode RAID controller for SAS, SATA and NVMe
Show product
SAS RAID Controller
Areca ARC-1214-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

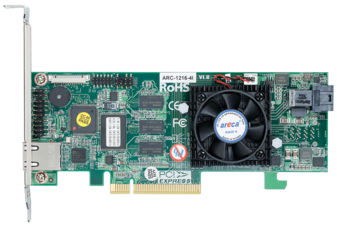

Areca ARC-1216-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

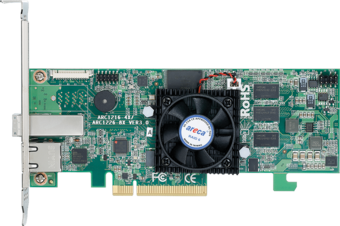

Areca ARC-1216-4x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

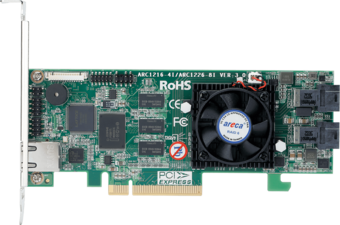

Areca ARC-1226-8i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

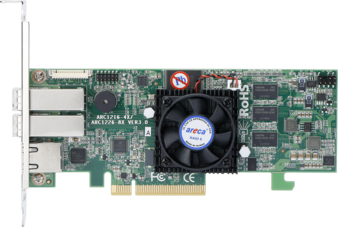

Areca ARC-1226-8x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

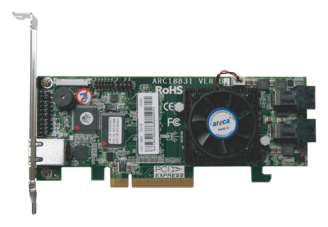

Areca ARC-1883I
A RAID controller for the really big tasks
Show product
SAS RAID Controller

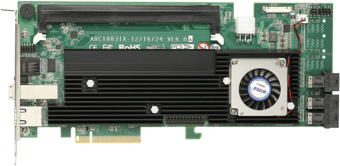

Areca ARC-1883IX-12
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-16
A RAID controller for the really big tasks
Show product
SAS RAID Controller

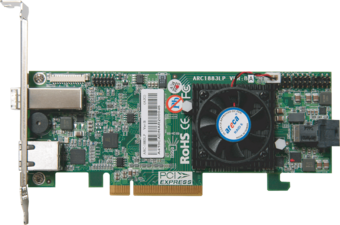

Areca ARC-1883LP
A RAID controller for the really big tasks
Show product
SAS RAID Controller

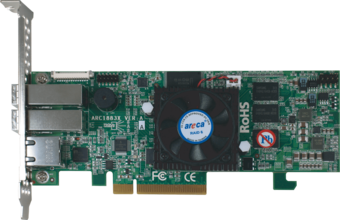

Areca ARC-1883X
A RAID controller for the really big tasks
Show product
SAS RAID Controller

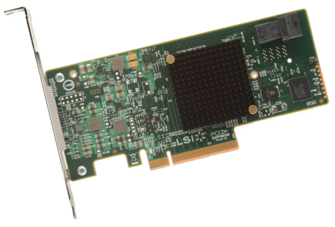

Broadcom/LSI MegaRAID SAS 9341-4i
Entry-level four-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9341-8i
Entry-level eight-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-16i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-24i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
Specifications
Administration
Serial port
No
General
Active cooling
No
Cooling type
Active
PCIe Generation
3.0
Model
ARC-1883 Serie
Cache
2 GB
Transferrate
12
Manufacturer
Areca
Internal connectors
4x SFF-8643
Other Technical Features
Drives (max.)
256
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
60 Celsius (°C)
Dimensions and Weight
FormFactor
full height, PCIe x8
Memory
Memory capacity (fully populated)
8 GB
Expansion and connectivity
External connections
1x SFF-8644
Internal connectors
4x SFF-8643
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
