SKU: ARC-4038-12
Areca ARC-4038-12
High-availability SAN storage for enterprise use
Manufacturer:
Areca
1
- Stable high throughput for even the most demanding applications
- SSD Cache and Automated Storage Tiering
- Flexible interface options in FC, SAS, iSCSI and FCoE
- 12 Gbps SAS technology
- High scalability up to 444 drives
- Controller backup via Super Capacitor

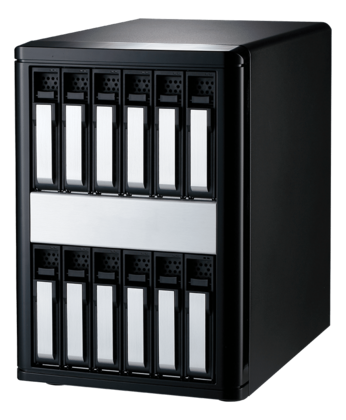

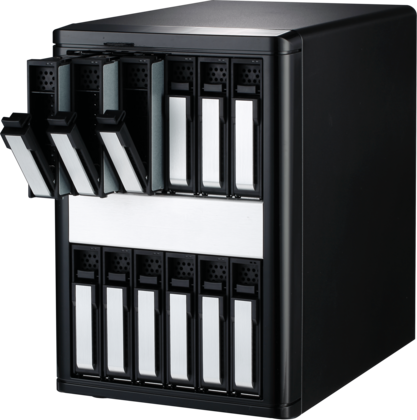

With 12 bays, the SAS-to-SAS-JBOD ARC-4038 forms a compact external storage enclosure for 12 Gbit/s SAS disks or 6 Gbit/s SATA (Serial ATA) drives. The box is suitable for both LFF and SFF drives. Each ARC-4038 Compact JBOD supports four 12 Gbps SFF-8644 and one 6 Gbps SFF-8088 SAS host and expansion ports. Configuration and environmental information can be established via either an in-band (SES-3.0 over SMP) or out-of-band serial port.
Similar products
JBOD
Areca ARC-4038-8
Fast JBOD in a small tower chassis
Show product
JBOD

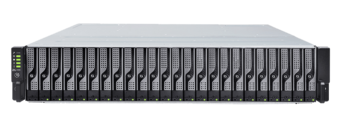

Infortrend JB 3024RB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Western Digital Ultrastar Data102 JBOD
High density flexibility - easily maintained
Show product
JBOD
Infortrend JB 3024SB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Areca ARC-4038ML
Fast JBOD in a small tower chassis
Show product
Specifications
Dimensions and Weight
Width
310 Millimeter (mm)
Depth
290 Millimeter (mm)
Height
206 Millimeter (mm)
Weight
9.5 Kilogram (kg)
FormFactor
Desktop
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
12
Rack mount rails
Quick release rails
No
Power supply
installed
1
Power supply
400
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
10% bis 80%, nicht kondensierend
General
Model
ARC-4038 Serie
Manufacturer
Areca
Expansion and connectivity
External connections
4xSFF-8644
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
