SKU: ARC-4038-8

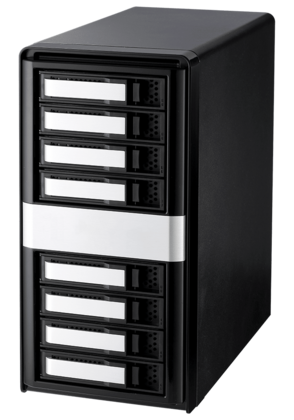

Areca ARC-4038-8
Fast JBOD in a small tower chassis
Manufacturer:
Areca
1
With 8 bays, the SAS-to-SAS-JBOD ARC-4038-8 forms a compact external storage enclosure for 12 Gbps SAS disks or 6 Gbps SATA (Serial ATA) drives. The box is suitable for both LFF and SFF drives. Each ARC-4038 Compact JBOD supports four 12 Gbps SFF-8644 and one 6 Gbps SFF-8088 SAS host and expansion ports. Configuration and environmental information can be established via either an in-band (SES-3.0 over SMP) or out-of-band serial port.
Similar products
JBOD
Areca ARC-4038-12
High-availability SAN storage for enterprise use
Show product
JBOD

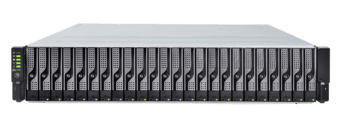

Infortrend JB 3024RB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Western Digital Ultrastar Data102 JBOD
High density flexibility - easily maintained
Show product
JBOD
Infortrend JB 3024SB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Areca ARC-4038ML
Fast JBOD in a small tower chassis
Show product
Specifications
Dimensions and Weight
Width
302 Millimeter (mm)
Depth
290 Millimeter (mm)
Height
146 Millimeter (mm)
Weight
6.8 Kilogram (kg)
FormFactor
Desktop
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
8
Rack mount rails
Quick release rails
No
Power supply
installed
1
Power supply
300 W
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
10% bis 80%, nicht kondensierend
General
Model
ARC-4038 Serie
Manufacturer
Areca
Expansion and connectivity
External connections
1x SFF-8088
4xSFF-8644
4xSFF-8644
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
