Areca ARC-5066CL-12 - Starline Computer: Storage und Server Lösungen von erfahrenen Experten
637661e3b846a087610818.png 637661e3b891b696274260.png 637661e3b8cbd315084583.jpg
SKU: ARC-5066CL-12

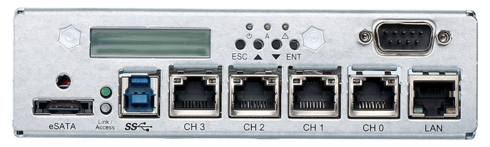

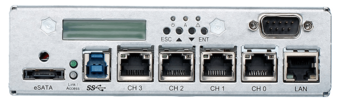

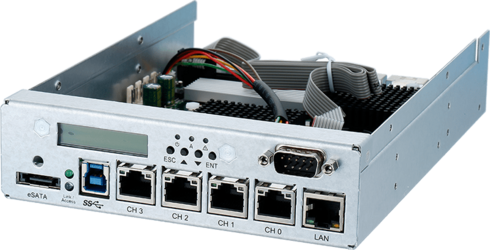

Areca ARC-5066CL-12

Through external RAID to Ethernet, eSATA and USB
Manufacturer:
Areca
1
Specifications
  • 12x 6.0 Gbps SATA disk channels
  • Multiple hosts: 1GbE(x4), 6 Gbps eSATA, USB 3.0
  • Up to 2GB cache, BBM optional
  • LAN with MPIO, MC/S, trunking and LACP support
  • RAID 6 and advanced power management
  • With Link Aggregation Control Protocol: 415 MB/sec read, 324 MB/sec write

Areca's ARC-5066 RAID controller family includes models with 8, 12, 16, 24 SATA hard disk ports at 6.0 Gbps depending on storage needs. They support multiple host interfaces: eSATA III, iSCSI or USB 3.0The RAID subsystem provides uninterrupted reliability with a high degree of fault tolerance through RAID technology and advanced array management features. The iSCSI connections with four 1GbE ports deliver high throughput, advanced features, high availability and scalable capacities.


Similar products
External RAID Controller
Areca ARC-9200FD-QR1
Stand-alone data manager ARC-9200 from Areca
External RAID Controller
Areca ARC-9200FD-DR1
Stand-alone data manager ARC-9200 from Areca
External RAID Controller
Areca ARC-9200FS-QR1
Stand-alone data manager ARC-9200 from Areca
External RAID Controller
Areca ARC-9200IS-DR1
Stand-alone data manager ARC-9200 from Areca
External RAID Controller
Areca ARC-9200ID-DR1
Stand-alone data manager ARC-9200 from Areca
External RAID Controller
Areca ARC-9200SS-DR1
Stand-alone data manager ARC-9200 from Areca
External RAID Controller
Areca ARC-5066CL-16
Through external RAID to Ethernet, eSATA and USB
External RAID Controller
Areca ARC-5066CL-24
Through external RAID to Ethernet, eSATA and USB
External RAID Controller
Areca ARC-8088F16-12
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088F16-16
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088F16-24
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088I10-12
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088I10-16
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088I10-24
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088SAS-12
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088SAS-16
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-8088SAS-24
External RAID performance via SAS, FC or iSCSI - expansion included
External RAID Controller
Areca ARC-9200SD-DR1
Stand-alone data manager ARC-9200 from Areca
External RAID Controller
Areca ARC-9200FS-DR1
Stand-alone data manager ARC-9200 from Areca
Specifications
Administration
Serial port
No
General
Active cooling
No
Cooling type
Passive
Model
ARC-5066 Serie
Cache
2 GB
Transferrate
6
Manufacturer
Areca
Internal connectors
3 x SFF-8087
Other Technical Features
Drives (max.)
12
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Dimensions and Weight
FormFactor
5.25"
Expansion and connectivity
Internal connectors
3 x SFF-8087
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
