SKU: ARC-8050T3-12R

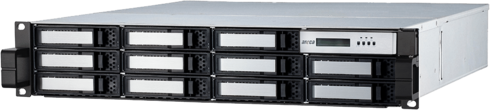

Areca ARC-8050T3-12R
Expandable rackmount system with Thunderbolt 3
Manufacturer:
Areca
1
- 12-bay storage
- 40 Gbps Thunderbolt 3 interface
- Simultaneous 4K input/output
- Provides enterprise-class data protection
- Battery backup protection (BBM) for cache optional
- SAS expansion port (up to 512 HDDs)
The ARC-8050T3-12R can be deployed in both PC and Mac environments with 12 bays and 2 Thunderbolt 3 ports. It features an integrated 1.2 GHz dual-core ROC and 2 GB ECC SDRAM memory for high-performance RAID protection. This allows the Thunderbolt3 system to simultaneously power demanding workgroups such as video editors with real-time HD and 4K streams. Daisy-chaining allows up to six devices to be connected, so the ARC-8050T3 rackmount requires only one Thunderbolt port to the host computer.
Similar products
RAID-System

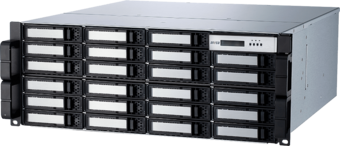

Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System

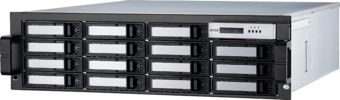

Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
Show product
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Netstor NA460C
External RAID system with a difference
Show product
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
Show product
Specifications
Dimensions and Weight
Width
482 Millimeter (mm)
Depth
484 Millimeter (mm)
Height
88.3 Millimeter (mm)
Weight
27 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Serial port
No
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
12
Power supply
installed
2
80PLUS certification
Platinum
Power supply
550W
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
10% bis 85%, nicht kondensierend
General
Model
ARC-8050T3 Rackmount Serie
Manufacturer
Areca
RAID levels suppored
1
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
Other Technical Features
RAID levels suppored
1
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
Onboard SAS-Expansionports (per controller)
1x 12Gbit/s miniSAS HD
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Host connectors per controller
Onboard Host Interfaces (per controller)
2x 40Gbit/s Thundebolt 3
Supported protocols
Protocols supported (Block)
Thunderbolt 3
