SKU: ARC-8050T3U-6M

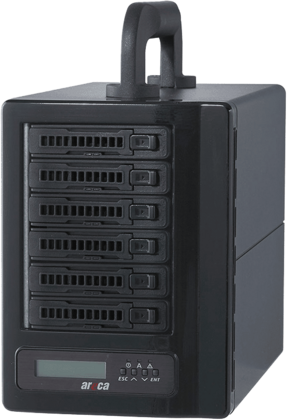

Areca ARC-8050T3U-6M

Universal storage for solitary media workstations
Manufacturer:
Areca
1
Specifications
  • Independent of the operating system (MAC, Windows, Linux)
  • 2x Thunderbolt 3 ports, compatible with USB-C (USB 3.2 Gen2/Gen1/2.0)
  • BBM cache memory support
  • Transport handle
  • LC display and control buttons on the front
  • Integrated web server

The sophisticated storage box handles USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 and Thunderbolt 3 via a single port, and the fast RAID systems are available with 4, 6, 8 and 12 drive bays. As an operating system-independent storage system, the installation succeeds without additional software or drivers. For the necessary security of the data stored on it, it supports RAID levels 0, 1, 10, 3, 5, 6, single disk or JBOD. The compact storage cubes are suitable wherever large amounts of data need to be quickly available at individual workstations. This is especially true for the media industry, for example in audio or video editing as well as in photo composing. Since there must be no disturbing noise, Areca's engineers installed an intelligent cooling system in the ARC-8050T3U. It continuously adapts to the ambient conditions by automatically regulating the speed of the brushless fan.


Similar products
Specifications
Dimensions and Weight
Width
165.6 Millimeter (mm)
Depth
232 Millimeter (mm)
Height
123 Millimeter (mm)
Weight
3.6 Kilogram (kg)
FormFactor
Desktop
Administration
Dedicated Management Port
No
Serial port
No
Memory per controller
Memory capacity (fully populated)
2 GIGABYTE
Drive bays
2.5" compatible
Yes
Drive bays 2.5" (hotswap)
6
Public Cloud Gateway
Public Cloud Gateway
No
Power supply
installed
1
Power supply
150W
Other Technical Features
RAID controller
Single
Scale-Out architecture
No
Drives (max.)
512
RAID levels suppored
1
10(1E)
3
5
6
30
50
60

Single Disk or JBOD
Onboard SAS-Expansionports (per controller)
1x 12Gbit/s miniSAS HD
General
Model
ARC-8050T3U Tower Serie
Manufacturer
Areca
RAID levels suppored
1
10(1E)
3
5
6
30
50
60

Single Disk or JBOD
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Host connectors per controller
Onboard Host Interfaces (per controller)
2x 40Gbit/s Thundebolt 3
Supported protocols
Protocols supported (Block)
Thunderbolt 3
USB 3.2 Gen. 2
Protocols supported (Object)
-
Protocols supported (File)
N/A
