SKU: ARC-8088SAS-12

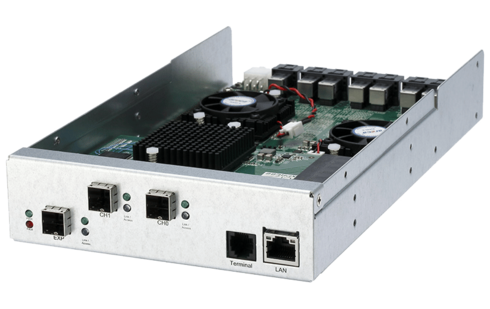

Areca ARC-8088SAS-12
External RAID performance via SAS, FC or iSCSI - expansion included
Manufacturer:
Areca
1
- Up to 24 x 6.0 Gbps SAS disk channels with six SFF8087 (mini-SAS) connectors
- ARC-8088 family with three host interface options: 12Gbps SAS, 10Gbps iSCSI, or 16Gbps FC
- Modular design with one or two RAID controllers
- SAS expander support for connecting up to 512 SAS/SATA devices
- 2GB DDR3-1866 cache, (FBM/BBM optional)
- Dual-core PPC476 1.2 GHz RAID-on-chip processor for high RAID-6 performance and advanced power management
The ARC-8088 family supports a flexible interface configuration with 8x 12Gbit/s SAS, 2/4x 16Gbit/s FC or 2x 10 Gbit/s iSCSI ports. The system can also be expanded to 256 drives via 4x 12 Gbit/s SAS expansion ports. The external RAID controllers are thus an ideal solution for enterprise-class storage applications that require maximum flexibility in expansion. 12, 16 or 24 drives with 12 Gbit/s SAS or 6 Gbit/s SATA can be managed in model variants. More bring a redundant controller for fault-tolerant connections via separate host interfaces, while the Single model offers a single, end-to-end data path.
Similar products
External RAID Controller
Areca ARC-9200FD-QR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200FD-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200FS-QR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200IS-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200ID-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200SS-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-5066CL-12
Through external RAID to Ethernet, eSATA and USB
Show product
External RAID Controller
Areca ARC-5066CL-16
Through external RAID to Ethernet, eSATA and USB
Show product
External RAID Controller
Areca ARC-5066CL-24
Through external RAID to Ethernet, eSATA and USB
Show product
External RAID Controller
Areca ARC-8088F16-12
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088F16-16
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088F16-24
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088I10-12
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088I10-16
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088I10-24
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088SAS-16
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-8088SAS-24
External RAID performance via SAS, FC or iSCSI - expansion included
Show product
External RAID Controller
Areca ARC-9200SD-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
External RAID Controller
Areca ARC-9200FS-DR1
Stand-alone data manager ARC-9200 from Areca
Show product
Specifications
Administration
Serial port
Yes
General
Active cooling
No
Cooling type
Active
Model
ARC-8088 Serie
Cache
2 GB
Transferrate
12
Manufacturer
Areca
Internal connectors
3x SFF-8643
Other Technical Features
Drives (max.)
256
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Dimensions and Weight
FormFactor
5.25"
Expansion and connectivity
External connections
2x SFF-8644 (host)
1x SFF-8644 (expansion)
1x SFF-8644 (expansion)
Internal connectors
3x SFF-8643
Mass storage controller
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk, JBOD
