/ / ASUS ESC4000 G4
637661e26b206587826662.png 637661e26aa30173270622.jpg 637661e26ae4b613155120.jpg 637661e26b6bb976590038.jpg
SKU: SCS-ESC4000-G4

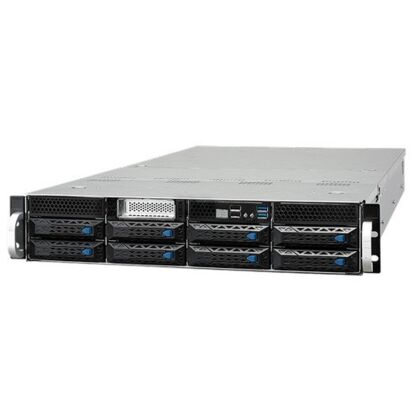

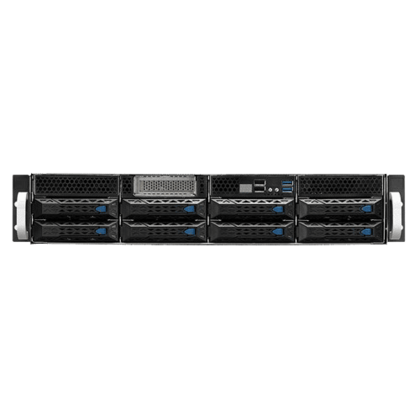

ASUS ESC4000 G4

GPU server for tricky calculations
Manufacturer:
Asus
1
Specifications
  • Intelligent fan design
  • Redundant power supplies
  • Optimized user interface
  • VMware certified

In the 2U GPU server ESC4000 G4 with Intel processors from the Xeon family, four double-deck GPU cards do the actual floating-point computing work. Its RAID mass storage with eight LFF SATA hard disk bays, the redundant power supplies and its 8+3 PCIe slots complete the coherent equipment list. The fast server offers terrific computing performance, enormous scalability and high energy efficiency.High-density computing is specifically designed to fit more computing power into one rack. The two-rack ESC4000 G4 easily does this by accommodating up to four GPUs for extremely high power density. The ESC4000 G4 supports up to eight PCIe Gen3 x16 slots. This results in high expandability and great compatibility with many expansion cards. Thus, the server works with a large number of GPU cards (NVIDIA Tesla, GridTM and AMD FirePro S series). In addition, there is also a PCIe Gen3 x 24 slot, which can also fit two low-profile HBAs or proprietary network cards with FDR and 10 GbE interface by means of a riser board.


Similar products
GPU Server
ASUS ESC8000 G4
GPU server for tricky calculations
Show product
GPU Server
ASUS ESC8000A-E12
GPU server for tricky calculations
Show product
Specifications
Dimensions and Weight
Width
440 Millimeter (mm)
Depth
800 Millimeter (mm)
Height
88 Millimeter (mm)
Weight
28 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2500
General
PCIe Generation
3.0
Model
ESC4000 G4
Manufacturer
Asus
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
5/6
PCIe x8 Slots (CPU1/CPU2)
4/6
PCIe x16 Slots (CPU1/CPU2)
2/3
USB 2.0 Ports (front/rear/internal)
2/0/0
USB 3.0 Ports (front/rear/internal)
2/2/0
Processor
Processor Manufacturer
Intel
Processors (max.)
2
Processor socket
LGA-3647 (Socket P)
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Platinum
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
2200W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Memory
Memory modules (type)
RDIMM
LRDIMM
Memory channels per CPU
6
Warranty and service
Optional services
3 Jahre Vor-Ort-Service 24/7
3 Jahre Vor-Ort-Service NBD
3 Jahre Vorabaustausch-Service
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
5 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service NBD
5 Jahre Vorabaustausch-Service
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Kundenimage Vorinstallation
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Multilane
Backplane (Conntector)
2x SFF-8643
GPU
GPUs (max.)
8
Graphics
Graphics (type)
Aspeed AST2500 (64MB VRAM)
Mass storage controller
Mass storage controller (type)
Intel® C621
Mass storage controller (interface)
8x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
# networking ports
2x
Networking (type)
Gigabit Ethernet
Networking controller
Intel® i350AM2
Plug type
RJ45
Software
Operating Systems (certified)
Windows Server 2016
VMware vSphere 6.5 and above
Windows Server 2019
