SKU: SCS-ESC8000A-E12
ASUS ESC8000A-E12
GPU server for tricky calculations
Manufacturer:
Asus
1

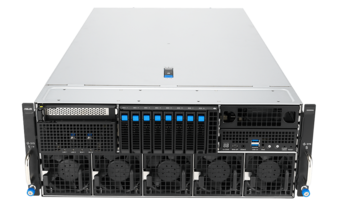

- 4U high-density GPU server
- Patented design
- Efficient cooling with redundant fans
- Easy maintenance and management
The ASUS GPU server, which occupies four height units, works with two AMD EPYC 9004 processors and can be equipped with up to 6 terabytes of RAM. The eight front-accessible drive bays are simply docked onto the SATA controller. There is also an optional controller for fast SAS disks and SSDs. The ESC8000A-E12 also offers an M.2 interface for SSDs (PCIe Gen3 x4 link 22110/2280/2260). Up to eight of its ten PCIe expansion slots can be used for GPU cards. NVIDIA H100, for example, is suitable for this. Fully equipped, the fast computing machine achieves around 480/240 teraflops (FP32/FP64)
Similar products
Specifications
Dimensions and Weight
Width
440 Millimeter (mm)
Depth
800 Millimeter (mm)
Height
174.5 Millimeter (mm)
Weight
27 Kilogram (kg)
FormFactor
4 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
General
PCIe Generation
5.0
Model
ESC8000A-E12
Manufacturer
Asus
Drive bays
2.5" compatible
Yes
Drive bays 2.5" (hotswap)
8
Drive bays 3.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
11
PCIe x8 Slots (CPU1/CPU2)
2
PCIe x16 Slots (CPU1/CPU2)
9
USB 2.0 Ports (front/rear/internal)
2/0/0
USB 3.0 Ports (front/rear/internal)
2/0/0
Processor
Processor Manufacturer
AMD
Processors (max.)
2
Processor socket
LGA 6096
Processor type
AMD EPYC™ 9004 (Genoa) Prozessor
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen
Power supply
installed
3
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
3000W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Memory
Memory modules (type)
LRDIMM
RDIMM
RDIMM
Memory channels per CPU
12
Memory capacity (fully populated)
6TB
Memory modules (max.)
24
Warranty and service
Optional services
3 Jahre Vorabaustausch-Service
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
5 Jahre Vor-Ort-Service NBD
3 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service 24/7
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Kundenimage Vorinstallation
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Kundenimage Vorinstallation
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Hybrid
Backplane (Conntector)
2x SFF-8643
4x MCIO
4x MCIO
GPU
GPUs (max.)
8
Graphics
Graphics (type)
Aspeed AST2600
Mass storage controller
Mass storage controller (type)
System on Chip
Mass storage controller (interface)
8x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel X710-AT2
Plug type
RJ45
Software
Operating Systems (certified)
Windows Server 2019
Windows Server 2022
vmware_vsphere_8_0
Windows Server 2022
vmware_vsphere_8_0
