ATTO ExpressSAS H-1208 - Starline Computer: Storage und Server Lösungen von erfahrenen Experten
SKU: ESAH-1208-000

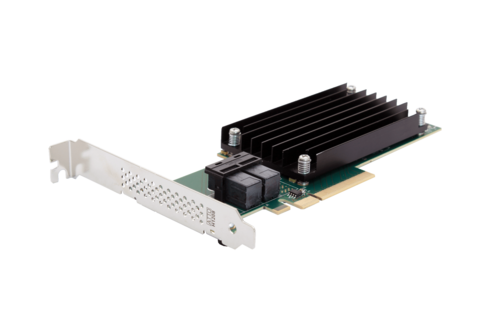

ATTO ExpressSAS H-1208

PCIe 3.0 host bus adapter with eight internal 12 Gbps SAS/SATA ports in low profile
Manufacturer:
ATTO
1
Specifications
  • RAID protection at no additional cost or driver (RAID 0, 1, 1e, 10)
  • Advanced Data Streaming (ADS) technology
  • 9600 MB/s over x8 PCIe 3.0 to host
  • 8 internal ports, SFF-8643 miniSAS HD with 12 Gbit/s (electrical/optical)
  • Backward compatible with 3/6 Gbit/s SAS/SATA
  • Drivers for Windows, Linux, VMware, FreeBSD and macOS

ExpressSAS SAS/SATA host bus adapters (HBAs) from ATTO provide powerful backup for directly attached SAS and SATA storage. They are ideal for increased connectivity and maximum performance in data centers. The HBAs are available with a wide range of 8-, 12- and 16-port options. This means that administrators can always find the right card for their rack-mounted servers and workstations in data centers, data warehousing, video-on-demand and all other high-availability applications.ExpressSAS HBAs are equipped with ATTO PowerCenter Pro, which offers hardware RAID capabilities for the price of a host bus adapter. It even does this without additional drivers or complicated setup. PowerCenter Pro is one of the most effective ways to improve performance while protecting data.The ExpressSAS H1208 model uses PCIe 3.0 host interconnect and has 8 internal 12 Gbps ports with miniSAS HD connector. It is designed specifically for enterprise customers. With extensive testing and qualifications, the HBAs work flawlessly in transactional environments such as banking and finance, business intelligence, cloud computing, and database applications.


Similar products
Specifications
Dimensions and Weight
Weight
113 Gram (g)
FormFactor
Low profile, PCIe x8
General
Length
167 Millimeter (mm)
Active cooling
No
PCIe Generation
4.0
Model
ExpressSAS
Manufacturer
ATTO
Network
Remote Direct Memory Access (RDMA)
No
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
55 Celsius (°C)
Operating Relative Humidity
10-90% nicht kondensierend
