SKU: XCET-8100-TSE

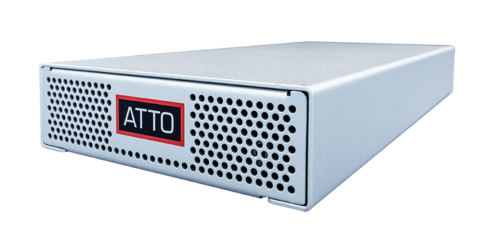

ATTO XstreamCORE ET 8100T
Intelligent 10GbE iSCSI-to-SAS bridge for shared LTO connection
Manufacturer:
ATTO
1
- Remotely connect backup servers to Ethernet tape solutions
- Connecting SAS tape devices to iSCSI Ethernet
o Increased availability, performance, scalability and flexibility
o Cost-effective archiving - reducing server costs
o Long distance archiving - Hardware handles data transfer with extremely low latency
- Merging SAS tape drives as iSCSI targets
- Simultaneous provision of advanced management functions and diagnostic options
- Reduced need for expensive, power-hungry servers for networked backups
This iSCSI-to-SAS adapter connects individual tape drives - without servers - to the Ethernet over long distances. For example, it allows remote sharing of SAS tape drives via 10GbE Ethernet networks. The highlight: the sophisticated box achieves these services at a lower cost and at a higher speed than a comparable solution with separate servers.
Compared to native Ethernet band devices, this solution is also more cost-effective, as the administrator requires fewer switch ports overall. It is also more efficient, as power, cooling and cabling requirements can be reduced.
Similar products
Adapters
ATTO ExpressSAS H-1280GT
PCIe 4.0 HBA with eight external 12 Gbps SAS/SATA ports in low profile
Show product
Adapters
ATTO ExpressSAS H-12F0
HBA with 16 external connections 12 Gbps SAS/SATA ports in Low Profile
Show product
Adapters
ATTO ExpressSAS H120FGT
PCIe 4.0 HBA with 16 internal 12 Gbps SAS/SATA ports in Low Profile
Show product
Adapters
ATTO ExpressSAS H-1244-000
HBA with 4 internal and 4 external 12 Gbps SAS/SATA ports in Low Profile
Show product
Adapters

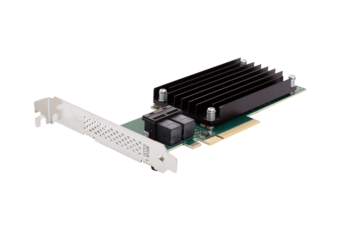

ATTO ExpressSAS H-1208
PCIe 3.0 host bus adapter with eight internal 12 Gbps SAS/SATA ports in low profile
Show product
Adapters

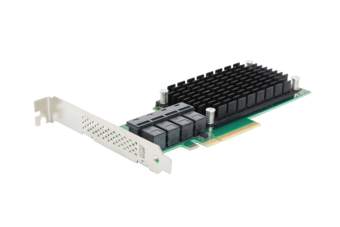

ATTO ExpressSAS H-120F
HBA with 16 internal 12 Gbps SAS/SATA ports in Low Profile
Show product
Specifications
Dimensions and Weight
Weight
2 Pound (lb)
FormFactor
Desktop
General
Active cooling
No
Networking ports
2
Model
XCET-8100-TSE
Manufacturer
ATTO
Network
Remote Direct Memory Access (RDMA)
No
# networking ports
2x
1x
1x

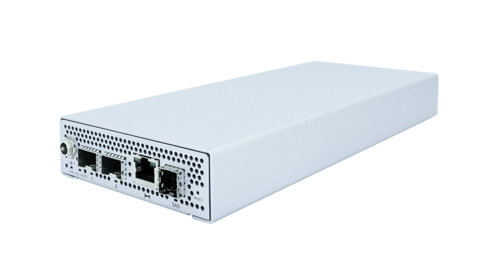

Networking (type)
2x 10Gbit/s iSCSI SFP+
SAS
SAS
Plug type
minisashd
SFP+
SFP+
Operating Environment
Operating Temperature (min.)
5 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
10%-90%
