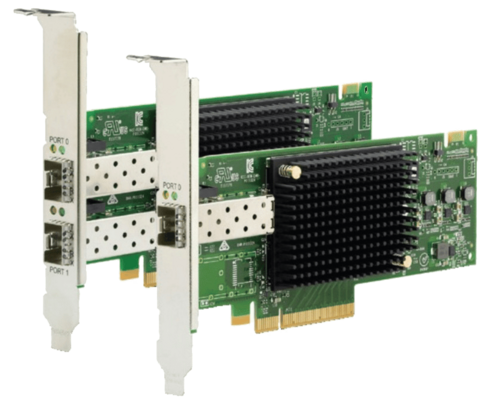

Broadcom Emulex LPe32002
- Short low profile PCIe card (167.6 mm x 68.9 mm) - includes low profile and standard slot bracket
- 100 m at 32G (OM4 MMF), 20 m at 32G (OM2 MMF), 70 m at 32G (OM3 MMF)
- 28.1 Gbit/s (3200 MB/s), 14 Gbit/s (1600 MB/s), 8.5 Gbit/s (800MB/s) (auto-detected)
- Drivers for Windows, Linux, VMware, Solaris, and XenServer
Broadcom's Emulex Gen6 (16/32G) Fibre Channel (FC) host bus adapters (HBAs) are designed to meet the demanding needs of today's networked storage systems that require high-performance, low-latency SSD storage drives and disk arrays.The Emulex HBAs deliver high performance, low latency, enhanced diagnostics and excellent manageability via Fibre Channel - as the gold standard for enterprise network storage connectivity and cloud deployments. Their unique dynamic multi-core architecture works exceptionally efficiently by applying ASIC resources to the port that needs them. With 12,800 MB/s (2 ports 32G FC or 4 ports 16G FC, full duplex), exceedingly low latency by comparison, and an industry-leading 1.6 million IOPS per adapter - quad-port HBAs LPe32004 even up to 3.2 million IOPS per adapter - the Broadcom adapters clearly stand out.The adapters are designed for NVMe over fabrics and also handle this simultaneously in interaction with SCSI.
