SKU: LSISAS9400-8I

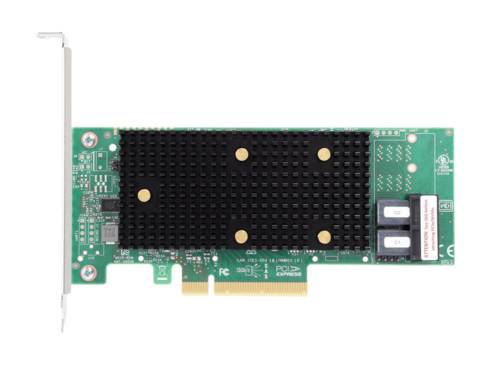

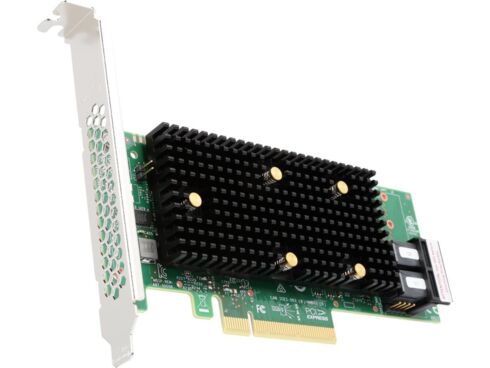

Broadcom/LSI 9400-8i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Manufacturer:
Broadcom
1
- Connects up to 1024 SAS/SATA or 24 NVMe drives
- 8 internal SAS and SATA ports over four Mini SAS HD SFF8643 (x4)
- Low profile format for 1U/2U rackmount servers
- 12 Gbps SAS and 6 Gbps SATA over 8 lanes with PCIe 3.1
- Drivers for Windows, VMware, Red Hat, SuSE, Ubuntu, XenServer, CentOS, Debian, Oracle, Fedora, FreeBSD
Tri-mode 9400 Series storage adapters are designed for large external storage enclosures and are ideal for increased connectivity and maximum performance - especially when data center flexibility is a concern. With increased bandwidth and IOPS performance over previous generations, the 9400-8i HBA provides the performance and scalability required for critical applications.
Similar products
Specifications
General
Active cooling
No
PCIe Generation
4.0
Model
Broadcom SAS HBA
Manufacturer
Broadcom
Network
Remote Direct Memory Access (RDMA)
No
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
55 Celsius (°C)
Dimensions and Weight
FormFactor
Low profile, PCIe x8
