SKU: LSIMRSAS9341-8I

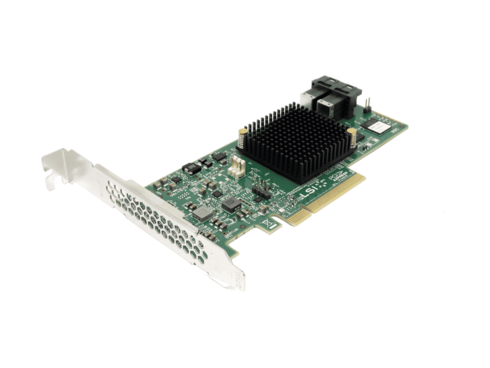

Broadcom/LSI MegaRAID SAS 9341-8i
Entry-level eight-port RAID controller
Manufacturer:
Broadcom
1
- Eight internal 12 Gbps SATA and SAS ports (2x SFF-8643 mini-SAS HD)
- Low profile for 1U and 2U rackmount servers
- Manages up to 64 SATA or SAS drives in JBOD - 32 in RAID
- High bandwidth through PCIe 3.0
- RAID levels 0, 1, 5, 10 and 50
- Drivers for Windows, Linux, VMware, FreeBSD, Solaris
Email, file or SharePoint applications need to be easily scalable, highly protected and easy to manage. This is where the MegaRAID SAS 9341-8i 12 Gbps controller card can add real value. Designed for small and medium-sized businesses (SMBs), they are suitable for tower and rackmount chassis. The RAID controllers from Broadcom (formerly LSI) thus offer the necessary scope to provide expansion potential well into the future, all at an affordable price.
Similar products
SAS RAID Controller

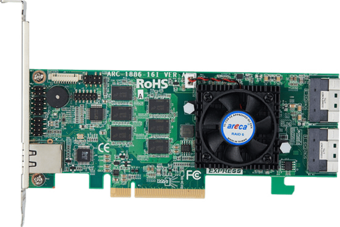

Areca ARC-1886-16I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

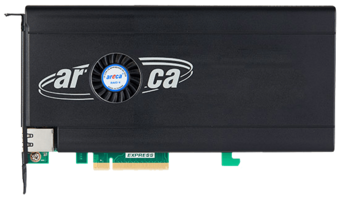

Areca ARC-1886-4N8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

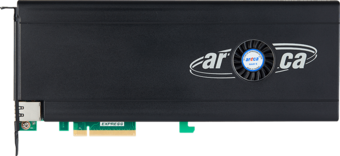

Areca ARC-1886-6N2I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

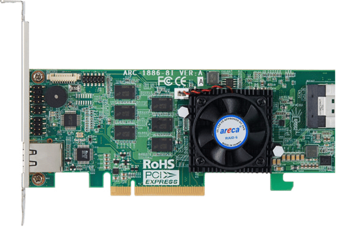

Areca ARC-1886-8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

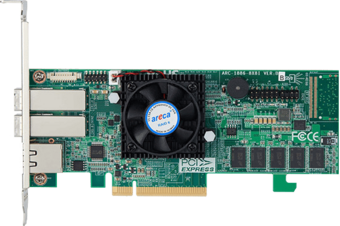

Areca ARC-1886-8X
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

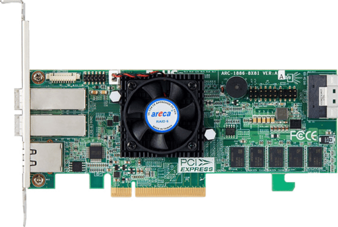

Areca ARC-1886-8X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X12I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller
Areca ARC-1886-4X8I
ARC-1886 Tri-Mode RAID Family for SAS/SATA/NVMe from Areca
Show product
SAS RAID Controller

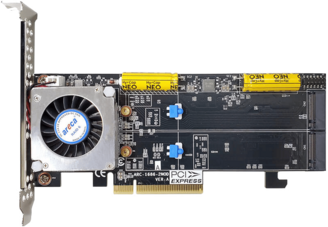

Areca ARC-1686-2NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller

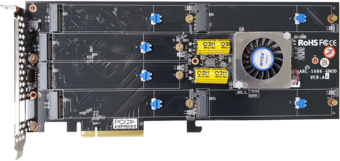

Areca ARC-1686-6NOD
Fast NVMe RAID controller from Areca
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID 9540-8i
PCIe 4.0 tri-mode RAID controller for SAS, SATA and NVMe
Show product
SAS RAID Controller

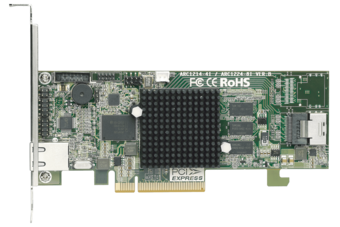

Areca ARC-1214-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

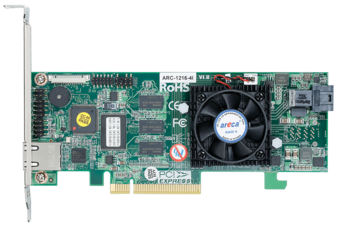

Areca ARC-1216-4i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

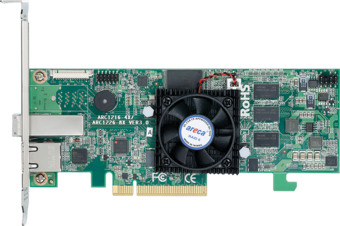

Areca ARC-1216-4x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

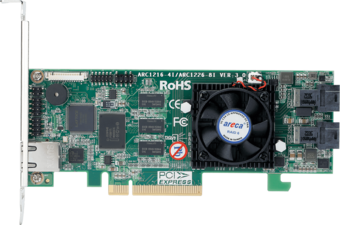

Areca ARC-1226-8i
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

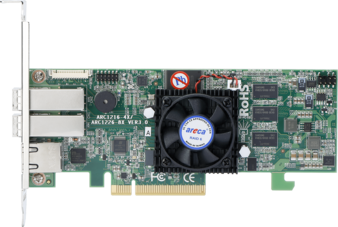

Areca ARC-1226-8x
RAIDy, steady, go! Controller for Server and NAS
Show product
SAS RAID Controller

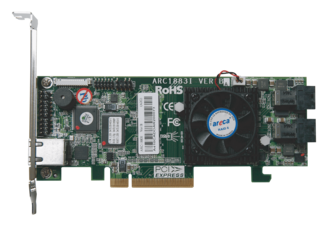

Areca ARC-1883I
A RAID controller for the really big tasks
Show product
SAS RAID Controller

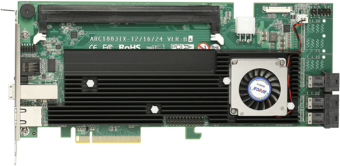

Areca ARC-1883IX-12
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-16
A RAID controller for the really big tasks
Show product
SAS RAID Controller
Areca ARC-1883IX-24
A RAID controller for the really big tasks
Show product
SAS RAID Controller

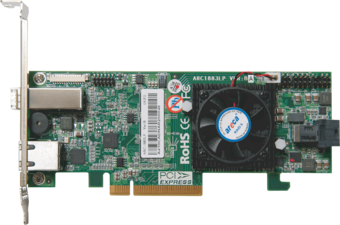

Areca ARC-1883LP
A RAID controller for the really big tasks
Show product
SAS RAID Controller

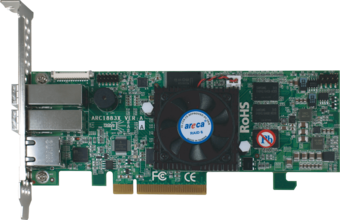

Areca ARC-1883X
A RAID controller for the really big tasks
Show product
SAS RAID Controller

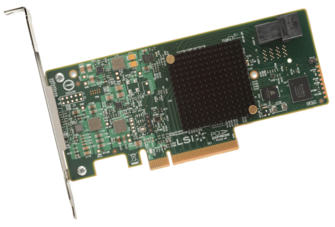

Broadcom/LSI MegaRAID SAS 9341-4i
Entry-level four-port RAID controller
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-16i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
SAS RAID Controller
Broadcom/LSI MegaRAID SAS 9361-24i
High-port SATA + SAS RAID controller for 12 Gbit/s
Show product
Specifications
Administration
Serial port
No
General
Active cooling
No
Cooling type
Passive
PCIe Generation
3.0
Model
Broadcom RAID Controller
Cache
N/A
Transferrate
12
Manufacturer
Broadcom
Internal connectors
2 x SFF-8643
Other Technical Features
Drives (max.)
64
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
70 Celsius (°C)
Dimensions and Weight
FormFactor
Low profile, PCIe x8
Expansion and connectivity
Internal connectors
2 x SFF-8643
