SKU: LSISAS9300-16E

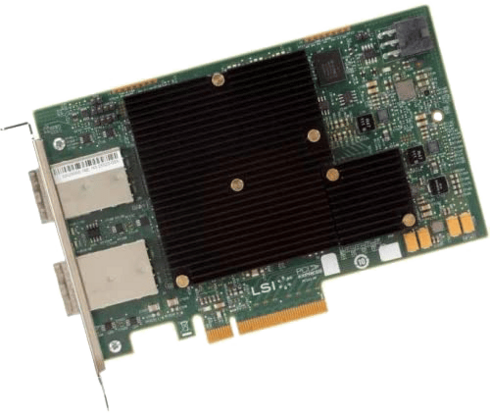

Broadcom/LSI SAS 9300-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Manufacturer:
Broadcom
1
- Connects up to 1024 drives
- 16 external SAS and SATA ports via four Mini SAS HD SFF8644 (x4)
- Low profile format for 1U/2U rackmount servers
- 12 Gbit/s SAS and 6 Gbit/s SATA over 8 lanes with PCIe 3.0
- Drivers for Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
External storage capacities can be easily connected with the SAS host bus adapter SAS 9300-16e. The HBA thus enables the server to access over 1000 external SAS or SATA drives. Thus, the storage of performance- and capacity-intensive applications can be expanded with either fast 12 Gbit/s SAS or attractively priced 6 Gbit/s SATA drives.
Similar products
HBA
Areca ARC-1320-4i4x
Low cost HBA for JBODs and removable media
Show product
HBA
Areca ARC-1320-8i
Low cost HBA for JBODs and removable media
Show product
HBA
Areca ARC-1320-8x
Low cost HBA for JBODs and removable media
Show product
HBA

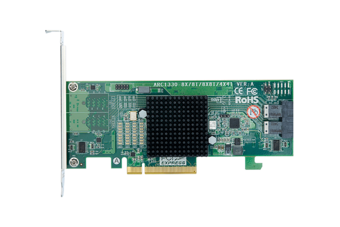

Areca ARC-1330-8i
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA
Areca ARC-1330-8x
2300 Megabyte per second fast: The 12 Gbit/s SAS-HBA ARC-1330 from Areca
Show product
HBA
Broadcom/LSI SAS 9300-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9300-4i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-16e
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-16i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI SAS 9305-24i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Show product
HBA
Broadcom/LSI 9400-16e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-16i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-8e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-8i
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9400-8i8e
SAS Performance with Turbo via Tri-Mode HBA from Broadcom
Show product
HBA
Broadcom/LSI 9405W-16e
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9405W-16i
SAS performance with 16 lanes in tri-mode HBA for Big Data applications
Show product
HBA
Broadcom/LSI 9500-16i
Tri-Mode HBAs for PCIe 4.0
Show product
HBA
Broadcom/LSI 9500-8e
Tri-Mode HBAs for PCIe 4.0
Show product
HBA
Broadcom/LSI 9500-8i
Tri-Mode HBAs for PCIe 4.0
Show product
Specifications
General
Active cooling
No
PCIe Generation
3.0
Model
Broadcom SAS HBA
Manufacturer
Broadcom
Network
Remote Direct Memory Access (RDMA)
No
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
55 Celsius (°C)
Dimensions and Weight
FormFactor
full height, PCIe x8
