SKU: LSISAS9305-24I

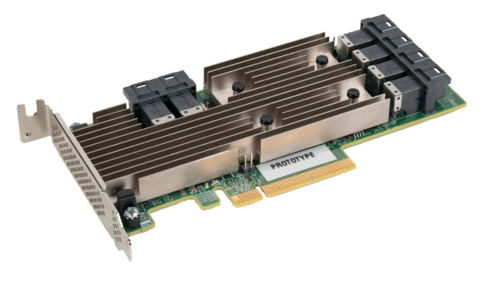

Broadcom/LSI SAS 9305-24i
High Performance SAS Connectivity with 12 Gbit/s Hosbus Adapter from Broadcom
Manufacturer:
Broadcom
1
- Connects up to 1024 drives
- 24 internal SAS and SATA ports over six Mini SAS HD SFF8643 (x4)
- Low profile format for 1U/2U rackmount servers
- 12 Gbps SAS and 6 Gbps SATA over 8 lanes with PCIe 3.0
- Drivers for Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Debian
- More than 1.5 million IOPS
The 12 Gbps SAS HBA 9305-24i is designed for large and data-intensive applications. It is considered ideal for increased connectivity and maximum performance for high-end servers and devices with internal storage. With a performance of over 1.5 million IOPS, this adapter provides the performance and scalability needed, especially for critical applications.
