SKU: ESDS-4016R2C

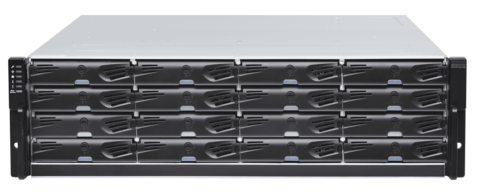

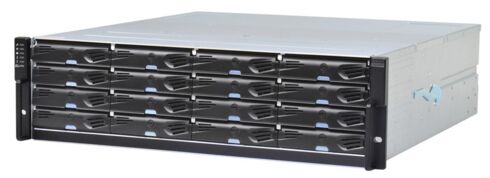

Infortrend EonStor DS 4016R2C
High-availability SAN storage for enterprise use
Manufacturer:
Infortrend
Discontinued
This product is currently no longer available.
- Stable high throughput for even the most demanding applications
- SSD Cache and Automated Storage Tiering
- Flexible interface options in FC, SAS, iSCSI and FCoE
- 12 Gbps SAS technology
- High scalability up to 444 drives
- Controller backup via Super Capacitor
As a 3U model with its 16 bays, the EonStor DS-4016R2C from Infortrend already belongs to the next generation of dual controller systems. This RAID system offers an excellent price-performance ratio. In addition, its performance with 750,000 IOPS (end-to-end), 11,000 MB/s sequential read and 5,500 MB/s sequential write throughput is top in the industry. Besides, the series impresses with high scalability, user-friendly operation and flexible host board configuration.
Similar products
RAID-System
Areca ARC-8050T3-12R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
Show product
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Netstor NA460C
External RAID system with a difference
Show product
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
Show product
Specifications
Administration
Dedicated Management Port
Yes
Serial port
Yes
Management Software
SANWatch, RAIDWatch
Memory per controller
Memory capacity (fully populated)
64 GIGABYTE
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
16
Host connectors per controller
Host-Board-Slots (per controller)
4
Onboard Host Interfaces (per controller)
2x 1Gbit/s iSCSI RJ45
Processor
Processor Manufacturer
Intel
Public Cloud Gateway
Public Cloud Gateway
No
Other Technical Features
RAID controller
Dual-Redundant
Scale-Out architecture
No
Drives (max.)
448
RAID levels suppored
1
(1+0)
3
5
6
10
30
50
60
(1+0)
3
5
6
10
30
50
60
Dimensions and Weight
FormFactor
3 HE Rackmount
General
Model
DS 4016
Manufacturer
Infortrend
RAID levels suppored
1
(1+0)
3
5
6
10
30
50
60
(1+0)
3
5
6
10
30
50
60
Memory
Cache Protection
Kondensator
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Software
Software features (optional)
Automated Storage Tiering
Local Replication Advanced
Remote Replication
SSD Caching
Local Replication Advanced
Remote Replication
SSD Caching
Softwarefeatures inclusive
Local Replication Standard
SED Management
Thin Provisioning
SED Management
Thin Provisioning
Supported protocols
Protocols supported (Block)
FC
iSCSI
SAS
iSCSI
SAS
Protocols supported (Object)
Cinder
