SKU: ESGS-1016S2CF

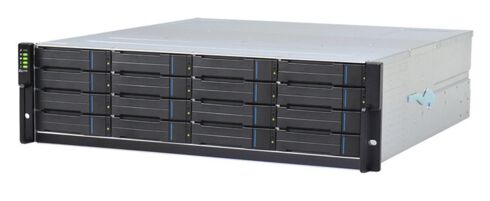

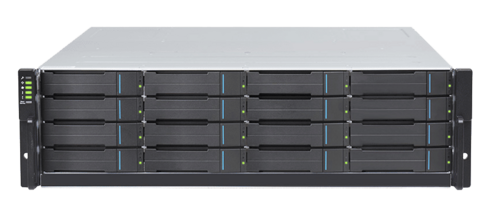

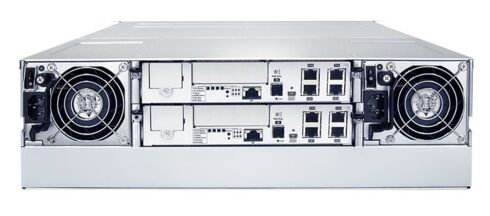

Infortrend EonStor GS 1016S2CF
The entry into a combined NAS, SAN and Cloud solution
Manufacturer:
Infortrend
Discontinued
This product is currently no longer available.
- 4x 1 Gbit/s iSCSI per controller onboard
- Optional host ports: Up to 32 Gbps FC, up to 40 Gbps iSCSI and 12 Gbps SAS
- Thin Provisioning (Block-Level)
- Snapshots (64 per volume, 128 per system)
- Remote Replication (File-Level) via Rsync with 128-bit SSH encryption
- SED (Self-Encrypting Drives)
As a complete unified storage solution at an SMB-friendly price, the EonStor GS 1000 series integrates NAS, SAN and cloud into a unified storage system. It offers great flexibility in both flash and hybrid configurations. With 16 SFF/LFF drive bays (12 Gbit/s SAS, 6 Gbit/s SATA) in 3U and Super Capacitor, the EonStor GS 1016S2CF universal RAID system provides secure access to a flexible storage platform.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Show product
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System

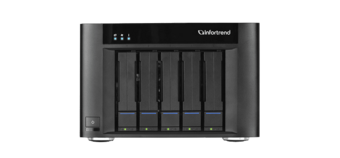

Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
Show product
NAS-System

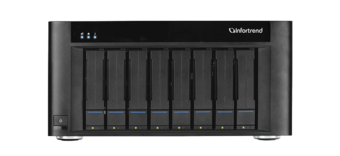

Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
Show product
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
Show product
NAS-System
NASdeluxe NDL-5508T/F
NASdeluxe family with the open source platform FreeNAS and the powerful ZFS
Show product
Specifications
Administration
Dedicated Management Port
No
Serial port
No
Management Software
EonOne
Memory per controller
Memory capacity (fully populated)
16 GIGABYTE
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
16
Host connectors per controller
Host-Board-Slots (per controller)
1
Onboard Host Interfaces (per controller)
4x 1Gbit/s iSCSI RJ45
Processor
Processor Manufacturer
Intel
Public Cloud Gateway
Public Cloud Gateway
No
Other Technical Features
RAID controller
Single
Scale-Out architecture
No
Drives (max.)
448
RAID levels suppored
1
(1+0)
3
5
6
10
30
50
60
(1+0)
3
5
6
10
30
50
60
Dimensions and Weight
FormFactor
3 HE Rackmount
General
Model
GS 1016
Manufacturer
Infortrend
RAID levels suppored
1
(1+0)
3
5
6
10
30
50
60
(1+0)
3
5
6
10
30
50
60
Memory
Cache Protection
Kondensator
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Software
Software features (optional)
Automated Storage Tiering
Cloud Caching
Cloud Gateway
Local Replication Advanced
Remote Replication
SSD Caching
Cloud Caching
Cloud Gateway
Local Replication Advanced
Remote Replication
SSD Caching
Softwarefeatures inclusive
Local Replication Standard
SED Management
Thin Provisioning
SED Management
Thin Provisioning
Supported protocols
Protocols supported (Block)
FC
iSCSI
SAS
iSCSI
SAS
Protocols supported (Object)
Swift
Protocols supported (File)
AFP
CIFS/SMB
FTP
FXP
NFS
WebDAV
CIFS/SMB
FTP
FXP
NFS
WebDAV
