SKU: ESGS-3090RT3

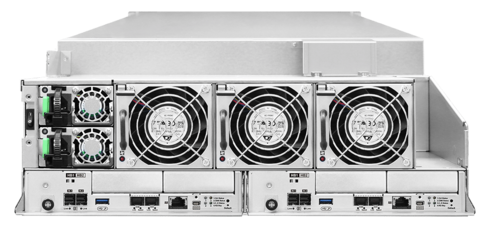

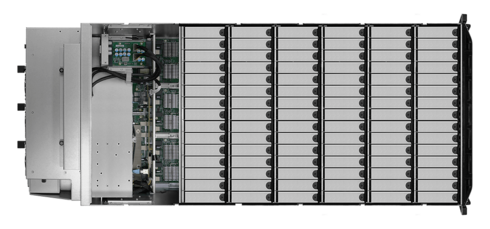

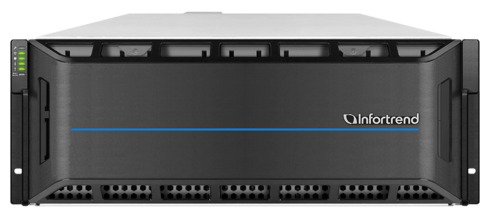

Infortrend EonStor GS 3090RT3 Generation 3
High availability NAS/SAN storage with hybrid cloud options
Manufacturer:
Infortrend
1
- 2x 1 Gbit/s and 2x 10 Gbit/s iSCSI per controller
- Optional: Up to 32 Gbit/s FC, up to 25 Gbit/s iSCSI and 12 Gbit/s SAS
- Thin Provisioning (Block-Level)
- Snapshots (64 per volume, 128 per system)
- Remote Replication (File-Level) via Rsync with 128-bit SSH encryption
- SED (Self-Encrypting Drives)
The EonStor GS 3000 series is a unified storage product that integrates NAS, SAN and cloud gateway in one system. With an advanced Intel CPU platform, it achieves up to 8,000 MB/s read and 4,000 MB/s write speeds, making it ideal for ever-increasing data center workloads. Its multiple host options allow for easy system integration into various environments. The EonStor GS 3000 series offers comprehensive data services, all flash/hybrid configuration, dual host board, wireless modular structure and data backup features.
Similar products
NAS-System
NASdeluxe NDL-5508T/L
Linux-based NASdeluxe endurance runners - powered by Open-E
Show product
NAS-System
Infortrend EonStor GSe Pro 1004RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1004SP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System
Infortrend EonStor GSe Pro 1008RP
Full-featured SAN storage at an SMB-friendly price point
Show product
NAS-System

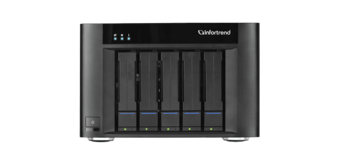

Infortrend EonStor GSe Pro 205
Unified Storage for the midmarket
Show product
NAS-System

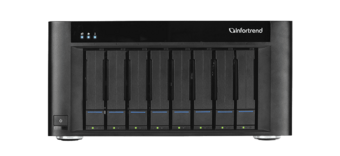

Infortrend EonStor GSe Pro 208
Unified Storage for the midmarket
Show product
NAS-System
Infortrend EonStor GSe Pro 208T
Unified Storage for the midmarket
Show product
NAS-System
NASdeluxe NDL-2890R
Compact and Rugged Rackmount iSCSI NAS
Show product
NAS-System
NASdeluxe NDL-5508T/F
NASdeluxe family with the open source platform FreeNAS and the powerful ZFS
Show product
Specifications
Dimensions and Weight
Width
443.2 Millimeter (mm)
Depth
849.8 Millimeter (mm)
Height
176 Millimeter (mm)
FormFactor
4 HE Rackmount
Administration
Dedicated Management Port
No
Memory
Memory (installed)
32 Gigabyte (GB)
Operating system
Open Source Operating System
No
High availability
No
Drive bays
2.5" compatible
No
Tape drive integration supported
No
Drive type supported
SAS
Drive bays 3.5" (hotswap)
90
Host connectors per controller
Host-Board-Slots (per controller)
4
Network
Active Directory Client
No
# networking ports
4x
Networking (type)
25 Gigabit Ethernet
max. number of nodes
Nodes (max.)
4
Rack mount rails
Quick release rails
No
Power supply
installed
2
80PLUS certification
Titanium
Power supply
1600W
Other Technical Features
RAID controller
Dual-Redundant
Scale-Out architecture
No
General
Model
ESGS-3090RT3
Manufacturer
Infortrend
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
Mass storage controller
Mass storage controller (supported RAID level)
0, 1, 3, 5, 6, 10, 30, 50, 60
