SKU: ESDS-JB3024RB
Infortrend JB 3024RB
Fast and reliable JBODs for demanding storage requirements
Manufacturer:
Infortrend
1
- Easily scale as needed
- Various form factors available, from 2U with 12 bays to 4U with 60 bays
- 12 Gbps SAS technology
- Hybrid SFF/LFF drive bays
- Single or dual controller
- Redundant 80 PLUS power supplies

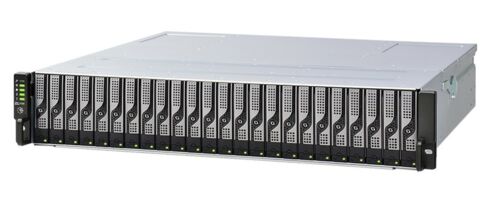

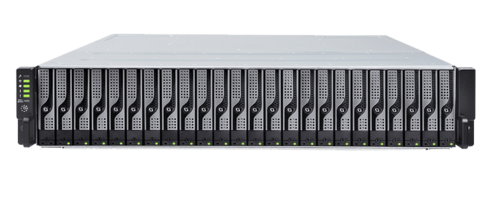

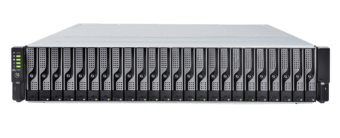

The reliable EonStor series from Infortrend's JB3000 family is suitable for demanding enterprise requirements. The JBODs provide additional storage capacity in an instant via their high-performance 12 Gbit/s SAS interfaces to the host. They are easy to deploy and maintain with their modular component design. The 2U JB3024RB model can accommodate 24 SAS or SATA (SFF) disks and is equipped with a dual controller.
Similar products
JBOD
Areca ARC-4038-12
High-availability SAN storage for enterprise use
Show product
JBOD
Areca ARC-4038-8
Fast JBOD in a small tower chassis
Show product
JBOD
Western Digital Ultrastar Data102 JBOD
High density flexibility - easily maintained
Show product
JBOD
Infortrend JB 3024SB
Fast and reliable JBODs for demanding storage requirements
Show product
JBOD
Areca ARC-4038ML
Fast JBOD in a small tower chassis
Show product
Specifications
Dimensions and Weight
Width
449 Millimeter (mm)
Depth
500 Millimeter (mm)
Height
88 Millimeter (mm)
FormFactor
2 HE Rackmount
Drive bays
2.5" compatible
Yes
Drive bays 2.5" (hotswap)
24
Rack mount rails
Quick release rails
No
Power supply
installed
2
80PLUS certification
Titanium
Power supply
redundant
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
5 % bis 95 % nicht kondensierend
General
Model
JB 3024
Manufacturer
Infortrend
Expansion and connectivity
External connections
4xSFF-8644
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Expander
