SKU: NA460C
Netstor NA460C
External RAID system with a difference
Manufacturer:
Netstor
1
- Uncomplicated data protection
- Platform independent
- Accepts SFF and LFF disks
- RAID-on-chip processor

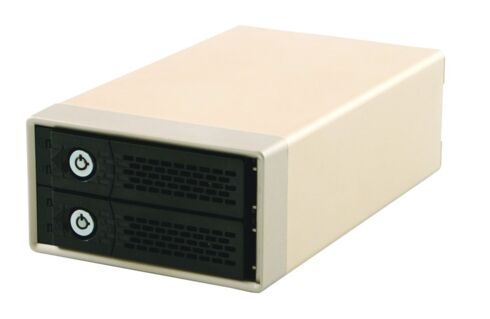

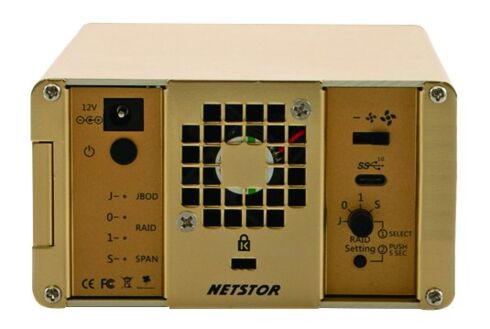

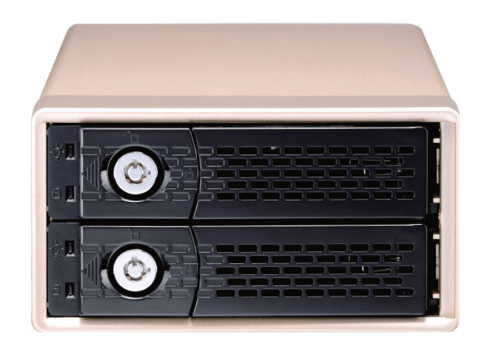

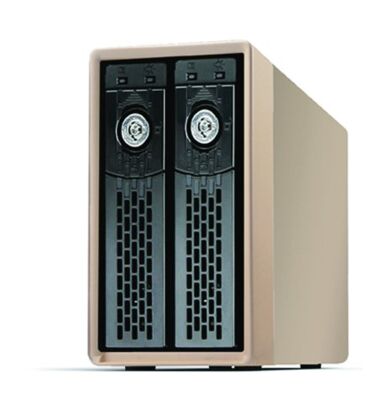

The compact, external 2-bay RAID system has a USB 3.2 Gen2 Type-C connector built in. This makes it possible to achieve transfer rates of up to 10 Gbit/s. Since USB 3.2 Gen2 and Thunderbolt 3 use the same connector shape, the NA460C can be easily used with any new MAC/PC. When connected to a laptop, PC or MAC, the RAID system is instantly available without any additional driver.
The NA460C supports 2.5 SFF and 3.5 LFF HDDs and SSDs. Depending on requirements, up to two 10TB HDDs can be used for more storage, or fast SSDs can be used for data transfer rates of up to 791MB/s read and 752MB/s write.
Similar products
RAID-System
Areca ARC-8050T3-12R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
Show product
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
Show product
Specifications
Dimensions and Weight
Width
120 Millimeter (mm)
Depth
205 Millimeter (mm)
Height
65 Millimeter (mm)
Weight
0.9 Kilogram (kg)
FormFactor
Desktop
Administration
Dedicated Management Port
No
Serial port
No
Memory per controller
Memory capacity (fully populated)
0 GIGABYTE
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
2
Public Cloud Gateway
Public Cloud Gateway
No
Power supply
installed
1
Required voltage
Wechselstrom 100/240 V (50-60 Hz)
Power supply
60W
Other Technical Features
RAID controller
Single
Scale-Out architecture
No
Drives (max.)
2
RAID levels suppored
1
Operating Environment
Operating Temperature (min.)
0 Celsius (°C)
Operating Temperature (max.)
40 Celsius (°C)
Operating Relative Humidity
20 bis 80 % nicht kondensierend
General
Model
Netstor RAID Systeme
Manufacturer
Netstor
RAID levels suppored
1
Enclosure backplane
Backplane (bandwidth)
6Gbit/s SATA
Host connectors per controller
Onboard Host Interfaces (per controller)
1x 10Gbit/s USB Typ-C
Supported protocols
Protocols supported (Block)
USB 3.1 Gen. 2
Protocols supported (Object)
-
Protocols supported (File)
N/A
