SKU: NS370TB3

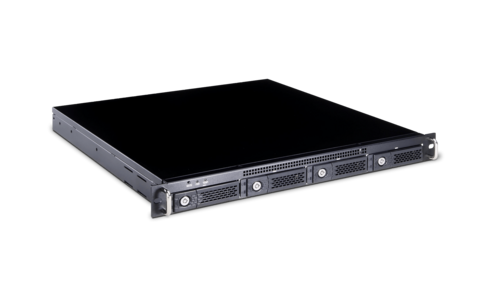

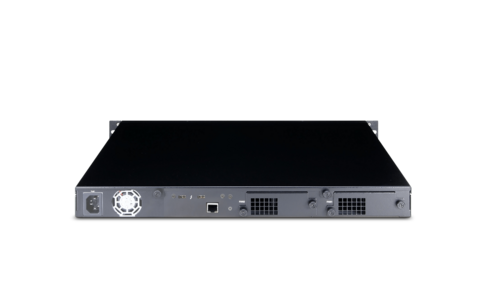

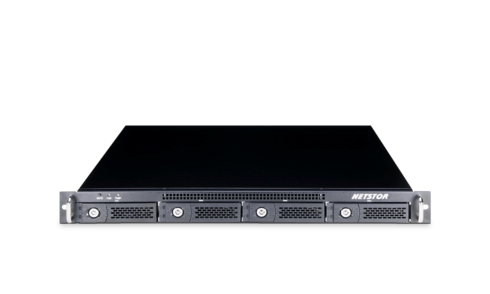

Netstor NS370TB3
Expanding storage density via Thunderbolt 3
Manufacturer:
Netstor
1
- 4 lockable drive bays
- Thunderbolt 3 (2-way for daisy chaining)
- RAID-on-chip processor
- Accommodates SFF and LFF disks
The 1U rackmount provides additional capacity via its 4 SAS/SATA drives using Thunderbolt 3. Thus, the storage of a workstation can be expanded quickly. With Thunderbolt, the connection between host and JBOD with 40 Gbit/s is high-performance and uncomplicated. The NA370TB3 from Netstor offers additional security with an integrated temperature and fan monitoring system. It immediately reports high temperatures or the failure of one of the fans.
Similar products
RAID-System

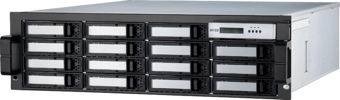

Areca ARC-8050T3-12R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System

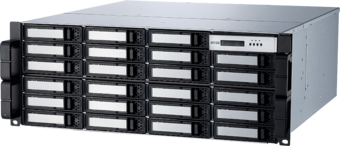

Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
Show product
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Netstor NA460C
External RAID system with a difference
Show product
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
Show product
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
Show product
Specifications
Dimensions and Weight
Width
482 Millimeter (mm)
Depth
460 Millimeter (mm)
Height
44 Millimeter (mm)
FormFactor
1 HE Rackmount
Administration
Dedicated Management Port
No
Serial port
No
Memory per controller
Memory capacity (fully populated)
1 GIGABYTE
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
4
Public Cloud Gateway
Public Cloud Gateway
No
Power supply
installed
1
Required voltage
Wechselstrom 100/240 V (50-60 Hz)
Power supply
250W
Other Technical Features
RAID controller
Single
Scale-Out architecture
Yes
Drives (max.)
4
RAID levels suppored
1
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
Operating Environment
Operating Temperature (min.)
5 Celsius (°C)
Operating Temperature (max.)
50 Celsius (°C)
Operating Relative Humidity
20 bis 80 % nicht kondensieren
General
Model
Netstor RAID Systeme
Manufacturer
Netstor
RAID levels suppored
1
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
Enclosure backplane
Backplane (bandwidth)
SAS
Supported protocols
Protocols supported (Block)
Thunderbolt 3
Protocols supported (Object)
-
Protocols supported (File)
N/A
