SKU: RDL-CD12F32Q-R2V2

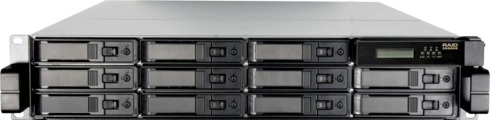

RAIDdeluxe RDL-CD12F32Q-R2V2
Budget with class: Solidly built rackmount RAID systems
Manufacturer:
RAIDdeluxe
1
- Enterprise entry-level series
- 12 Gbps backplane
- Configuration and monitoring via LCD, RS232 or LAN
- User-friendly browser-based RAIDManager
- Controller with API Library
- Single Admin Portal" (SAP) manages multiple RAID system
The RAIDdeluxe systems with 8/4x 32 Gbit/s Fibre Channel host interface per controller rely on proven dual (CD)/single (CS) RAID controllers from Areca. They are equipped with a high performance dual core ROC. Systems from this series are energy efficient, operating system independent and can be used in various virtualization environments.
In the RDL-CD12/CS12 (2U), up to 12 SFF/LFF drives can be mixed with 12 Gbit/s SAS or 6 Gbit/s SATA hard disks/SSDs - depending on whether a fast database application or secure storage of large data volumes is required. Multiple JBODs can be connected to the already unlocked 12 Gbit/s miniSAS HD expansion ports - up to a total of 512 drives.
Similar products
RAID-System
Infortrend EonStor DS 4024R2C
High-availability SAN storage for enterprise use
Show product
RAID-System
Infortrend EonStor DS 4024R2CB
High-availability SAN storage for enterprise use
Show product
RAID-System
Infortrend EonStor DS 4024S2C
High-availability SAN storage for enterprise use
Show product
RAID-System
Areca ARC-8050T3-12R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3-24R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System

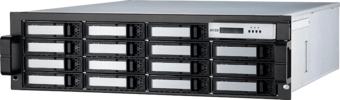

Areca ARC-8050T3-16R
Expandable rackmount system with Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3S4U-24
Rackmount system with Thunderbolt 3 for agile workgroups
Show product
RAID-System
Areca ARC-8050T3U-12
Universal storage for solitary media workstations
Show product
RAID-System
Areca ARC-8050T3U-6
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NA341TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Netstor NA460C
External RAID system with a difference
Show product
RAID-System
Areca ARC-8050T3U-6M
Universal storage for solitary media workstations
Show product
RAID-System
Netstor NS370TB3
Expanding storage density via Thunderbolt 3
Show product
RAID-System
Areca ARC-8050T3U-8
Universal storage for solitary media workstations
Show product
Specifications
Dimensions and Weight
Width
482 Millimeter (mm)
Depth
506 Millimeter (mm)
Height
88.2 Millimeter (mm)
Weight
29 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
No
Serial port
No
Drive bays
2.5" compatible
Yes
Public Cloud Gateway
Public Cloud Gateway
No
Other Technical Features
RAID controller
Dual-Redundant
Scale-Out architecture
No
Drives (max.)
512
RAID levels suppored
1
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
General
Model
RAIDdeluxe C-Serie
Manufacturer
RAIDdeluxe
RAID levels suppored
1
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
10(1E)
3
5
6
30
50
60
Single Disk or JBOD
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Host connectors per controller
Onboard Host Interfaces (per controller)
4x 32Gbit/s Fibre-Channel SFP28
Operating Environment
Operating Relative Humidity
10-85%
Supported protocols
Protocols supported (Block)
FC
