SKU: Z50-12R2

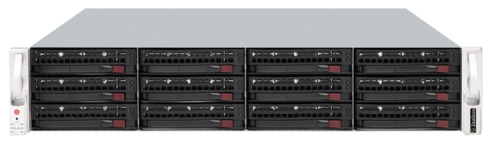

Zealbox Z50.12-12R2
Individual and customised enterprise-class servers
Manufacturer:
Zealbox
1
- 2U rackmount chassis with twelve LFF bays
- Open platform with powerful hardware
- Performant virtualization platform
- Up to four fast NVMe drives
- Failsafe cooling concept
- Excellent expandability
Zealbox Z50 form an open hardware platform that can be installed in different housing variants depending on the performance and interface requirements of the customer. However, the Z50 servers have one thing in common: a single- or dual-socket boards based on Intel. In combination with the up to four terabytes of RAM in the 16 memory banks of the Supermicro board, there are no more performance bottlenecks. They are therefore ideally suited for virtualization, databases and hosting, or even as high-availability storage.In the various housing variants from two to four height units, our Z50 servers offer space for 8 to 36 SFF and/or LFF drives. The basic model Zealbox Z50.12-12R2 has a 2U rackmount chassis with twelve LFF drive bays. Additional interfaces, controllers or other options are added as needed. Moreover, we do our best to realize special requests.
Similar products
Application Server
Zealbox Z70-08R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-12R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-08T
Individual and customized enterprise-class servers with Intel CPUs
Show product
Application Server
Zealbox Z50.17-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-16R3
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z80-08R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-12R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-16R3
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server

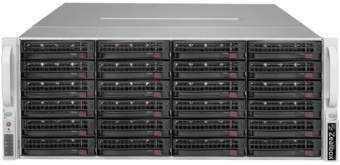

Zealbox Z80-36R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z50.16-24R4
Individual and customised enterprise-class servers
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
89 Millimeter (mm)
Weight
16 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2500
General
PCIe Generation
3.0
Model
Zealbox Z50-12R2
Manufacturer
Zealbox
Drive bays
2.5" compatible
No
Drive bays 2.5" (rear option)
2
Drive bays 3.5" (hotswap)
12
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
3/3
PCIe x8 Slots (CPU1/CPU2)
2/0
PCIe x16 Slots (CPU1/CPU2)
1/3
USB 2.0 Ports (front/rear/internal)
0/2/2
USB 3.0 Ports (front/rear/internal)
0/2/3
Processor
Processor Manufacturer
Intel
Processors (max.)
2
Processor socket
LGA-3647 (Socket P)
Processor type
2nd Generation Intel® Xeon® Scalable Processors Cascade Lake Refresh SP
2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP
Intel® Xeon® Scalable Processors Skylake SP
2nd Generation Intel® Xeon® Scalable Processors Cascade Lake SP
Intel® Xeon® Scalable Processors Skylake SP
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Platinum
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
920W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8-90%
Memory
Memory modules (type)
DCPMM
LRDIMM
RDIMM
LRDIMM
RDIMM
Memory channels per CPU
6
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Memory modules (max.)
16
Chip
Mainboard
SuperMicro X11DPI-NT
Chipset
Intel® C622
Warranty and service
Optional services
3 Jahre Vor-Ort-Service 24/7
3 Jahre Vor-Ort-Service NBD
3 Jahre Vorabaustausch-Service
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
5 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service NBD
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
3 Jahre Vorabaustausch-Service
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
5 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service NBD
5 Jahre Vorabaustausch-Service
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Kundenimage Vorinstallation
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Kundenimage Vorinstallation
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Single Expander
Backplane (Conntector)
1x SFF-8643
Graphics
Graphics (type)
Aspeed AST2500 (64MB VRAM)
Mass storage controller
Mass storage controller (type)
Intel® C622
Mass storage controller (interface)
14x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel® X722 + X557
Plug type
RJ45
Software
Operating Systems (certified)
Windows Server 2016
Windows Server 2019
Citrix XenServer 7.1
Red Hat Enterprise Linux 7.3 and above
VMware vSphere 6.5 and above
Windows Server 2019
Citrix XenServer 7.1
Red Hat Enterprise Linux 7.3 and above
VMware vSphere 6.5 and above
