SKU: Z50-24R2

Zealbox Z50.13-24R2

Individual and customised enterprise-class servers

Manufacturer:

Zealbox

1

Specifications

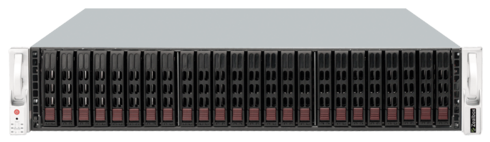

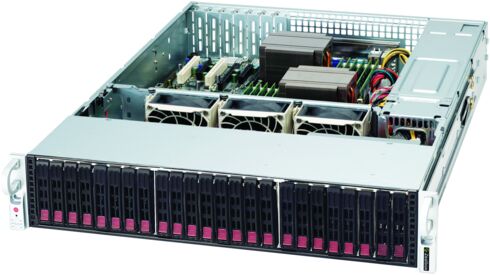

2U rackmount chassis with 24 SFF bays
Open platform with powerful hardware
Performant virtualization platform
Up to four fast NVMe drives
Failsafe cooling concept
Excellent expandability

Zealbox Z50 form an open hardware platform that can be installed in different housing variants depending on the performance and interface requirements of the customer. However, the Z50 servers have one thing in common: a single- or dual-socket boards based on Intel. In combination with the up to four terabytes of RAM in the 16 memory banks of the Supermicro board, there are no more performance bottlenecks. They are therefore ideally suited for virtualization, databases and hosting, or even as high-availability storage.In the various housing variants from two to four height units, our Z50 servers offer space for 8 to 36 SFF and/or LFF drives. The basic model Zealbox Z50.13-24R2 has a 2U rackmount chassis with 24 SFF drive bays. Additional interfaces, controllers or other options are added as needed. Moreover, we do our best to realize special requests.

Application Server

Zealbox Z70-08R2

Individual and customised enterprise-class servers

Application Server

Zealbox Z70-12R2

Individual and customised enterprise-class servers

Application Server

Zealbox Z70-24R2

Individual and customised enterprise-class servers

Application Server

Zealbox Z70-36R4

Individual and customised enterprise-class servers

Application Server

Zealbox Z70-08T

Individual and customized enterprise-class servers with Intel CPUs

Application Server

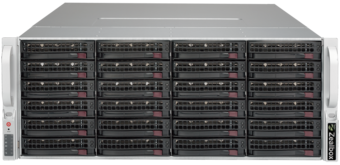

Zealbox Z50.17-36R4

Individual and customised enterprise-class servers

Application Server

Zealbox Z70-16R3

Individual and customised enterprise-class servers

Application Server

Zealbox Z70-24R4

Individual and customised enterprise-class servers

Application Server

Zealbox Z80-08R2

Individual and customized enterprise-class servers with AMD CPUs

Application Server

Zealbox Z80-12R2

Individual and customized enterprise-class servers with AMD CPUs

Application Server

Zealbox Z80-16R3

Individual and customized enterprise-class servers with AMD CPUs

Application Server

Zealbox Z80-24R2

Individual and customized enterprise-class servers with AMD CPUs

Application Server

Zealbox Z80-24R4

Individual and customized enterprise-class servers with AMD CPUs

Application Server

Zealbox Z80-36R4

Individual and customized enterprise-class servers with AMD CPUs

Application Server

Zealbox Z50.16-24R4

Individual and customised enterprise-class servers

Specifications

Dimensions and Weight

Width

437 Millimeter (mm)

Depth

630 Millimeter (mm)

Height

89 Millimeter (mm)

Weight

18 Kilogram (kg)

FormFactor

2 HE Rackmount

Administration

Dedicated Management Port

Yes

Management Controller

Aspeed AST2500

General

PCIe Generation

3.0

Model

Zealbox Z50-24R2

Manufacturer

Zealbox

Drive bays

2.5" compatible

No

Drive bays 2.5" (hotswap)

24

Drive bays 2.5" (rear option)

2

Expansion and connectivity

PCIe Slots total (CPU1/CPU2)

3/3

PCIe x8 Slots (CPU1/CPU2)

2/0

PCIe x16 Slots (CPU1/CPU2)

1/3

USB 2.0 Ports (front/rear/internal)

0/2/2

USB 3.0 Ports (front/rear/internal)

0/2/3

Processor

Processor Manufacturer

Intel

Processors (max.)

2

Processor socket

LGA-3647 (Socket P)

Processor type

Intel Xeon Scalable Processors Skylake SP
2nd Generation Intel Xeon Scalable Processors Cascade Lake SP
2nd Generation Intel Xeon Scalable Processors Cascade Lake Refresh SP

Rack mount rails

Quick release rails

Yes

Rail type

Teleskopschienen

Power supply

installed

2

80PLUS certification

Titanium

Required voltage

Wechselstrom 110/230 V (50/60 Hz)

Power supply

1200W Netzteil

Operating Environment

Operating Temperature (min.)

10 Celsius (°C)

Operating Temperature (max.)

35 Celsius (°C)

Operating Relative Humidity

8-90%

Memory

Memory modules (type)

DCPMM
LRDIMM
RDIMM

Memory channels per CPU

6

Memory Modules (restrictions)

Pro CPU 8 Speichermodule

Memory capacity (fully populated)

4 TB

Memory modules (max.)

16

Chip

Mainboard

SuperMicro X11DPI-NT

Chipset

Intel® C622

Warranty and service

Optional services

3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange

Other services

Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation

Service package

3 years full service package BASICfrom date of purchase

Enclosure backplane

Backplane (bandwidth)

12Gbit/s SAS

Backplane (Type)

1x Single Expander
Hybrid support (SAS/SATA/NVMe)

Backplane (Conntector)

4x SFF-8643 (NVMe)
1x SFF-8643

Graphics

Graphics (type)

Aspeed AST2500 (64MB VRAM)

Mass storage controller

Mass storage controller (type)

Intel® C622

Mass storage controller (interface)

14x SATA3

Mass storage controller (bandwidth)

6 Gbit/s

Mass storage controller (supported RAID level)

Intel® RST (RAID 0,1,5,10 Windows only)

Network

# networking ports

2x

Networking (type)

10 Gigabit Ethernet

Networking controller

Intel® X722 + X557

Plug type

RJ45

Software

Operating Systems (certified)

Citrix XenServer 7.1
Red Hat Enterprise Linux 7.3 and above
VMware vSphere 6.5 and above
Windows Server 2016
Windows Server 2019
