SKU: Z70-08TS

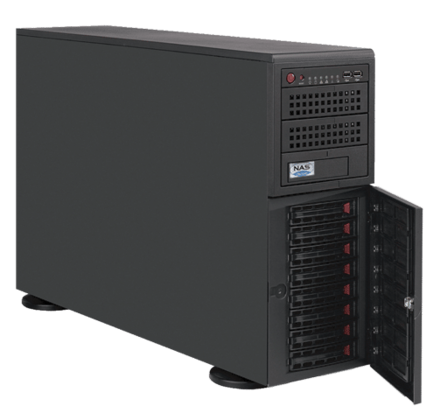

Zealbox Z70-08TS

Individual and customized enterprise-class servers
Manufacturer:
1
Specifications
  • Silent server with special air ducts and fans
  • 2U rackmount housing with eight LFF bays
  • High-performance virtualization platform
  • Up to four fast NVMe drives
  • Fail-safe cooling concept
  • Outstanding expandability

Zealbox Z70 (subfamily: Silent Server) form an open hardware platform that can be installed in different housing variants to suit the customer's performance and interface requirements. However, the Z70 servers have one thing in common: a single or dual socket board based on Intel. In addition to significantly lower power consumption, this processor generation also offers considerable performance advantages.

In combination with the up to four terabytes of RAM in the 16 memory banks of the Supermicro board, there are no longer any performance bottlenecks. They are therefore ideally suited for virtualization, databases and hosting or as high-availability storage. Our Z70 servers offer space for 8 to 36 SFF and/or LFF drives in the various housing variants from two to four height units. The basic Zealbox Z70-08R2 model has a 2U rackmount housing with eight LFF drive bays. Additional interfaces, controllers or other options can be added as required. We also do our best to realize special requests. For example, this model is a particularly quiet version from the Z70 series.

Specifications
Dimensions and Weight
Width
178 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
452 Millimeter (mm)
Weight
28 Kilogram (kg)
FormFactor
Tower, 4 HE Rackmount optional
Administration
Dedicated Management Port
Yes
Management Controller
ASPEED AST2600
Drive bays
2.5" compatible
Yes
Drive bays 3.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
5
PCIe x8 Slots (CPU1/CPU2)
2
PCIe x16 Slots (CPU1/CPU2)
3
USB 2.0 Ports (front/rear/internal)
0/2/2
USB 3.0 Ports (front/rear/internal)
0/2/3
Processor
Processor Manufacturer
Intel
Processors (max.)
1
Processor socket
LGA-4189 (Socket P+)
Processor type
3rd Generation Intel® Xeon® Scalable Processors Ice Lake SP
Rack mount rails
Quick release rails
No
Rail type
Teleskopschienen optional
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1200W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8%-90% (nicht kondensierend)
General
Model
Z70-08TS
Memory
Memory modules (type)
LRDIMM
RDIMM
Memory channels per CPU
6
Memory capacity (fully populated)
2 TB
Memory modules (max.)
8
Chip
Mainboard
Supermicro X12SPI-TF
Chipset
C621A
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Multilane
Graphics
Graphics (type)
ASPEED AST2600
Mass storage controller
Mass storage controller (type)
Intel® C621A
Mass storage controller (interface)
10x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
RAID Level 0, 1, 10(1E), 5, 6, 50, 60
Network
# networking ports
2x
Networking (type)
10 GB Ethernet
Networking controller
Intel® X550
Plug type
RJ-45
