SKU: Z70-24R2
Zealbox Z70-24R2
Individual and customised enterprise-class servers
Manufacturer:
Zealbox
1

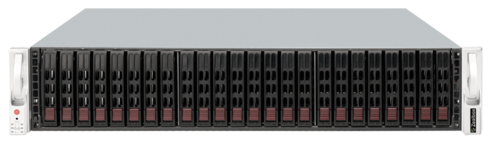

- 2U rackmount chassis with 24 SFF bays
- Open platform with powerful hardware
- Performant virtualization platform
- Up to four fast NVMe drives
- Failsafe cooling concept
- Excellent expandability

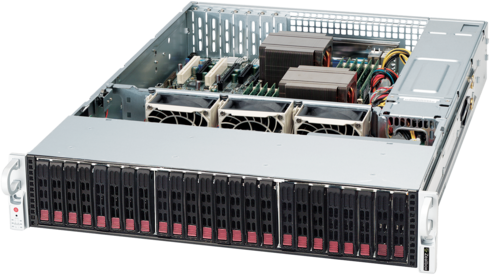

Zealbox Z70 form an open hardware platform that can be installed in different housing variants depending on the performance and interface requirements of the customer. However, the Z70 servers have one thing in common: a single- or dual-socket boards based on Intel. In combination with the up to four terabytes of RAM in the 16 memory banks of the Supermicro board, there are no more performance bottlenecks. They are therefore ideally suited for virtualization, databases and hosting, or even as high-availability storage.In the various housing variants from two to four height units, our Z70 servers offer space for 8 to 36 SFF and/or LFF drives. The basic model Zealbox Z70-24R2 has a 2U rackmount chassis with 24 SFF drive bays. Additional interfaces, controllers or other options are added as needed. Moreover, we do our best to realize special requests.
Similar products
Application Server
Zealbox Z70-08R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-12R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-08T
Individual and customized enterprise-class servers with Intel CPUs
Show product
Application Server

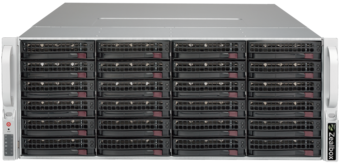

Zealbox Z50.17-36R4
Individual and customised enterprise-class servers
Show product
Application Server

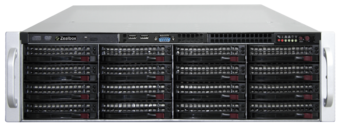

Zealbox Z70-16R3
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R4
Individual and customised enterprise-class servers
Show product
Application Server

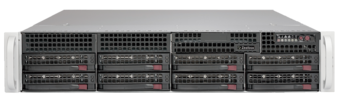

Zealbox Z80-08R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-12R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-16R3
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-36R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server

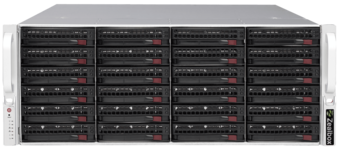

Zealbox Z50.16-24R4
Individual and customised enterprise-class servers
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
630 Millimeter (mm)
Height
89 Millimeter (mm)
Weight
18 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2600
General
PCIe Generation
4.0
Model
Zealbox Z70-24R2
Manufacturer
Zealbox
Drive bays
2.5" compatible
No
Drive bays 2.5" (hotswap)
24
Drive bays 2.5" (rear option)
2
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
3/3
PCIe x8 Slots (CPU1/CPU2)
1/1
PCIe x16 Slots (CPU1/CPU2)
2/2
USB 2.0 Ports (front/rear/internal)
0/0/2
USB 3.0 Ports (front/rear/internal)
0/4/3
Processor
Processor Manufacturer
Intel
Processors (max.)
2
Processor socket
LGA-4189 (Socket P+)
Processor type
3rd Generation Intel® Xeon® Scalable Processors Ice Lake SP
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1200W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8-90%
Memory
Memory modules (type)
DCPMM
LRDIMM
RDIMM
LRDIMM
RDIMM
Memory channels per CPU
8
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Memory modules (max.)
16
Chip
Mainboard
SuperMicro X12DPI-NT6
Chipset
Intel® C621A
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
1x Single Expander
Hybrid support (SAS/SATA/NVMe)
Hybrid support (SAS/SATA/NVMe)
Backplane (Conntector)
4x SFF-8643 (NVMe)
1x SFF-8643
1x SFF-8643
Graphics
Graphics (type)
Aspeed AST2600
Mass storage controller
Mass storage controller (type)
Intel® C621A
Mass storage controller (interface)
14x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel® X550
Plug type
RJ45
Software
Operating Systems (certified)
rehl_8_2
rehl_9_0
vmware_vsphere_6_7_U3
vmware_vsphere_7_0_U2
vmware_vsphere_8_0
Windows Server 2022
Windows Server 2019
rehl_9_0
vmware_vsphere_6_7_U3
vmware_vsphere_7_0_U2
vmware_vsphere_8_0
Windows Server 2022
Windows Server 2019
