SKU: Z80-12R2
Zealbox Z80-12R2
Individual and customized enterprise-class servers with AMD CPUs
Manufacturer:
Zealbox
1

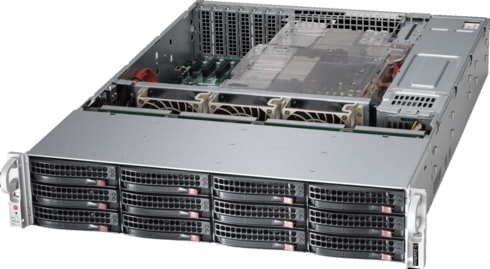

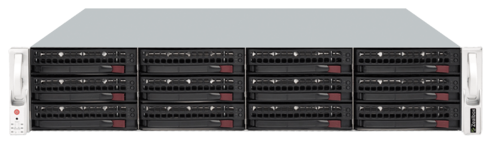

- 2U rackmount chassis with 12 LFF bays
- Open platform with powerful hardware
- Performant virtualization platform
- Very high power density
- Failsafe cooling concept
- Excellent expandability
Zealbox Z80s form an open hardware platform that can be installed in different housing variants according to the customer's performance and interface requirements. However, all Z80 servers have two things in common: They rely on the EPYC CPUs of the AMD high-performance series and operate in indestructible enterprise chassis from Supermicro. The Z80 servers are suitable, for example, for virtualization, cloud computing, hyper-converged storage or simply as high-end enterprise servers.In the various housing variants from two to four height units, our Z80 servers offer space for 8 to 36 SFF and/or LFF drives. The basic model Zealbox Z80-12R2 has a 2U rackmount chassis with 12 LFF drive bays. Additional interfaces, controllers or other options are added as needed. Moreover, we do our best to realize special requests.
Similar products
Application Server
Zealbox Z70-08R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-12R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R2
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-08T
Individual and customized enterprise-class servers with Intel CPUs
Show product
Application Server
Zealbox Z50.17-36R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-16R3
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z70-24R4
Individual and customised enterprise-class servers
Show product
Application Server
Zealbox Z80-08R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-16R3
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R2
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-24R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z80-36R4
Individual and customized enterprise-class servers with AMD CPUs
Show product
Application Server
Zealbox Z50.16-24R4
Individual and customised enterprise-class servers
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
89 Millimeter (mm)
Weight
18 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2500
General
PCIe Generation
3.0
Model
Zealbox Z80-12R2
Manufacturer
Zealbox
Drive bays
2.5" compatible
No
Drive bays 2.5" (rear option)
2
Drive bays 3.5" (hotswap)
12
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
4/1
PCIe x8 Slots (CPU1/CPU2)
2/1
PCIe x16 Slots (CPU1/CPU2)
2/0
USB 2.0 Ports (front/rear/internal)
0/2/0
USB 3.0 Ports (front/rear/internal)
0/2/0
Processor
Processor Manufacturer
AMD
Processors (max.)
2
Processor socket
Socket SP3
Processor type
AMD EPYC? 7002 (ROME) Processors
AMD EPYC? 7001 (NAPLES) Processors
AMD EPYC? 7001 (NAPLES) Processors
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Platinum
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
920W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Operating Relative Humidity
8-90%
Memory
Memory modules (type)
LRDIMM
RDIMM
RDIMM
Memory channels per CPU
8
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Memory modules (max.)
16
Chip
Mainboard
SuperMicro H11DSI-NT
Chipset
AMD SoC
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Single Expander
Backplane (Conntector)
1x SFF-8643
Graphics
Graphics (type)
Aspeed AST2500 (64MB VRAM)
Mass storage controller
Mass storage controller (type)
AMD SoC
Mass storage controller (interface)
10x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel® X550
Plug type
RJ45
Software
Operating Systems (certified)
Citrix XenServer 7.1
Red Hat Enterprise Linux 7.4 and above
VMware vSphere 6.5U1and above
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.4 and above
VMware vSphere 6.5U1and above
Windows Server 2016
Windows Server 2019
