SKU: ZBA.R208

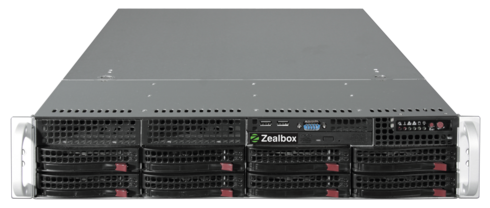

Zealbox ZBA.R208
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Manufacturer:
Zealbox
1
- 2U appliance with eight drive bays
- Powerful equipment with scalable CPUs
- Backups of the virtual machines outside the virtualization server
- Optional advance replacement service/on-site service bookable
The Zealbox Backup Appliance provides small and medium-sized businesses (SMBs) with a high-performance, affordable and easy-to-install complete solution for backing up and restoring virtual machines (VMs) under VMware vSphere or Microsoft Hyper-V via Veeam Backup & Replication. With a powerful Areca RAID controller, redundant power supplies, optional iSCSI and FC HBAs, and SAS expansion port, the Zealbox Backup Appliance also offers the convenience of a conventional storage server.The Zealbox Backup Appliance is based on an open platform with powerful hardware from manufacturers such as Intel, Supermicro, Broadcom and Areca. It is expandable in capacity at any time through JBODs and can be integrated completely flexibly into any network.
Similar products
Backup Server
Zealbox ZBA.R104
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server
Zealbox ZBA.R212
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

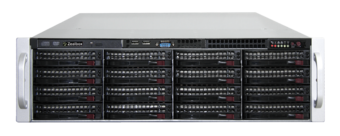

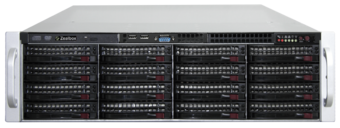

Zealbox ZBA.R316
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server
Zealbox ZBA.R424
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

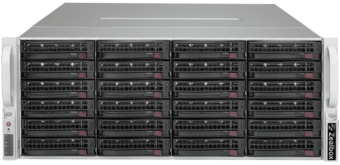

Zealbox ZBA.R436
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server
Zealbox ZBA.T408
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
89 Millimeter (mm)
Weight
15 Kilogram (kg)
FormFactor
2 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2500
General
PCIe Generation
3.0
Model
ZBA.R208
Manufacturer
Zealbox
Drive bays
Slimline drive bay
1
2.5" compatible
No
Drive bays 3.5" (hotswap)
8
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
3
PCIe x8 Slots (CPU1/CPU2)
2
PCIe x16 Slots (CPU1/CPU2)
1
USB 2.0 Ports (front/rear/internal)
0/2/4
USB 3.0 Ports (front/rear/internal)
0/2/3
Processor
Processor Manufacturer
Intel
Processors (max.)
1
Processor socket
LGA-1151 (Socket H4)
Processor type
Intel® Xeon® E-2100 Prozessor
Intel® Xeon® E-2200 Prozessor
8./9. Generation Intel® Corei3
Intel® Xeon® E-2200 Prozessor
8./9. Generation Intel® Corei3
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Platinum
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
740W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Memory
Memory modules (type)
UDIMM
Memory channels per CPU
2
Memory capacity (fully populated)
128 GB
Memory modules (max.)
4
Chip
Mainboard
SuperMicro X11SCL-F
Chipset
Intel® C242
Warranty and service
Optional services
3 Jahre Vor-Ort-Service 24/7
3 Jahre Vor-Ort-Service NBD
3 Jahre Vorabaustausch-Service
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
5 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service NBD
5 Jahre Vorabaustausch-Service
3 Jahre Vor-Ort-Service NBD
3 Jahre Vorabaustausch-Service
Vollwartungsvertrag BASIC für 5 Jahre ab Lieferung
5 Jahre Vor-Ort-Service 24/7
5 Jahre Vor-Ort-Service NBD
5 Jahre Vorabaustausch-Service
Other services
BIOS-Konfiguration nach Kundenwunsch
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Kundenimage Vorinstallation
Festplattenpartitionierung nach Kundenwunsch
Individuelle Systemkonfiguration
Kundenimage Vorinstallation
Service package
Vollwartungsvertrag BASIC für 3 Jahre ab Lieferung
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Discrete
Backplane (Conntector)
8x SAS/SATA
Graphics
Graphics (type)
Aspeed AST2500 (64MB VRAM)
Mass storage controller
Mass storage controller (type)
Intel® C242
Mass storage controller (interface)
6x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
# networking ports
2x
Networking (type)
Gigabit Ethernet
Networking controller
Intel® I210
Plug type
RJ45
Other Technical Features
Drive type
Slimline Optical optional
