SKU: ZBA.R316

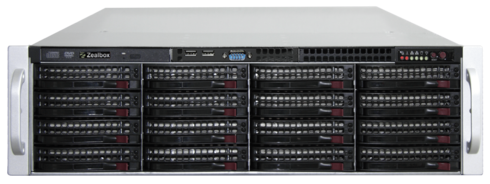

Zealbox ZBA.R316
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Manufacturer:
Zealbox
1
- 3U appliance with 16 drive bays
- Powerful equipment with scaleable CPUs
- Backups of virtual machines outside the virtualization server
- Optional advance replacement service/on-site service bookable
The Zealbox Backup Appliance provides small and medium-sized businesses (SMBs) with a high-performance, affordable and easy-to-install complete solution for backing up and restoring virtual machines (VMs) under VMware vSphere or Microsoft Hyper-V via Veeam Backup & Replication. With a powerful Areca RAID controller, redundant power supplies, optional iSCSI and FC HBAs, and SAS expansion port, the Zealbox Backup Appliance also offers the convenience of a conventional storage server.The Zealbox Backup Appliance is based on an open platform with powerful hardware from manufacturers such as Intel, Supermicro, Broadcom and Areca. It is expandable in capacity at any time through JBODs and can be integrated completely flexibly into any network.
Similar products
Backup Server
Zealbox ZBA.R104
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

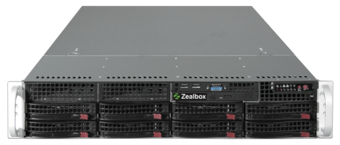

Zealbox ZBA.R208
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server
Zealbox ZBA.R212
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

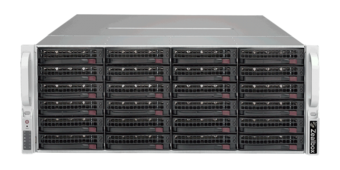

Zealbox ZBA.R424
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server

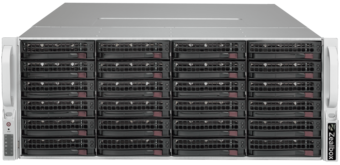

Zealbox ZBA.R436
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Backup Server
Zealbox ZBA.T408
Zealbox Backup Appliance (ZBA) for VMware vSphere and Microsoft Hyper-V
Show product
Specifications
Dimensions and Weight
Width
437 Millimeter (mm)
Depth
647 Millimeter (mm)
Height
132 Millimeter (mm)
Weight
23 Kilogram (kg)
FormFactor
3 HE Rackmount
Administration
Dedicated Management Port
Yes
Management Controller
Aspeed AST2500
General
PCIe Generation
3.0
Model
ZBA.R316
Manufacturer
Zealbox
Drive bays
Slimline drive bay
1
2.5" compatible
No
Drive bays 2.5" (rear option)
2
Drive bays 3.5" (hotswap)
16
Expansion and connectivity
PCIe Slots total (CPU1/CPU2)
3/3
PCIe x8 Slots (CPU1/CPU2)
2/0
PCIe x16 Slots (CPU1/CPU2)
1/3
USB 2.0 Ports (front/rear/internal)
0/2/2
USB 3.0 Ports (front/rear/internal)
0/2/3
Processor
Processor Manufacturer
Intel
Processors (max.)
2
Processor socket
LGA-3647 (Socket P)
Processor type
2nd Generation Intel Xeon Scalable Processors Cascade Lake Refresh SP
2nd Generation Intel Xeon Scalable Processors Cascade Lake SP
Intel Xeon Scalable Processors Skylake SP
2nd Generation Intel Xeon Scalable Processors Cascade Lake SP
Intel Xeon Scalable Processors Skylake SP
Rack mount rails
Quick release rails
Yes
Rail type
Teleskopschienen
Power supply
installed
2
80PLUS certification
Titanium
Required voltage
Wechselstrom 110/230 V (50/60 Hz)
Power supply
1000W Netzteil
Operating Environment
Operating Temperature (min.)
10 Celsius (°C)
Operating Temperature (max.)
35 Celsius (°C)
Memory
Memory modules (type)
DCPMM
LRDIMM
RDIMM
LRDIMM
RDIMM
Memory channels per CPU
6
Memory Modules (restrictions)
Pro CPU 8 Speichermodule
Memory capacity (fully populated)
4 TB
Memory modules (max.)
16
Chip
Mainboard
SuperMicro X11DPI-NT
Chipset
Intel® C622
Warranty and service
Optional services
3 years onsite service (24/7)
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
3 years onsite service (NBD)
3 years advance exchange
5 years full service package BASIC from date of purchase
5 years onsite service (24/7)
5 years onsite service (NBD)
5 years advance exchange
Other services
Customer defined BIOS configuration
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Customer defined drive partitioning
Customer defined system configuration
Customer image pre-installation
Service package
3 years full service package BASICfrom date of purchase
Enclosure backplane
Backplane (bandwidth)
12Gbit/s SAS
Backplane (Type)
Single Expander
Backplane (Conntector)
1x SFF-8643
Graphics
Graphics (type)
Aspeed AST2500 (64MB VRAM)
Mass storage controller
Mass storage controller (type)
Intel® C622
Mass storage controller (interface)
14x SATA3
Mass storage controller (bandwidth)
6 Gbit/s
Mass storage controller (supported RAID level)
Intel® RST (RAID 0,1,5,10 Windows only)
Network
# networking ports
2x
Networking (type)
10 Gigabit Ethernet
Networking controller
Intel® X722 + X557
Plug type
RJ45
Other Technical Features
Drive type
Slimline Optical optional
